Name: Eighteeth Curing Light CuringPen E 3 LED
Brand: Eighteeth
Price: 249.99 CAD
Availability: OutOfStock

Eighteeth Curing Light CuringPen E 3 LED

$249.99 CAD

Detailed product information

Specifications, clinical guidance, documents and safety information are available below.

View product details

Eighteeth · coming-soon

Eighteeth Curing Light CuringPen E 3 LED

$249.99 CAD

Out of stock

We will work quickly to ship your order as soon as possible. All orders ship free with no minimum order quantity. Express shipping is available for an additional fee.

Return eligible items within 30 days of delivery. We offer free returns, making the process simple and hassle-free.

To be eligible for a return, your item must be unused, unopened, in the same condition as received, and in its original packaging. You'll also need the receipt or proof of purchase.

Trying one of our endodontic file systems for the first time? We want you to purchase with confidence. If the system is not well suited to your clinical technique, contact us within 30 days of purchase. We will help you select a more suitable option or provide an exchange or refund in accordance with our return policy.

Applies to first-time purchases of eligible products. Maximum one opened pack per product system. Proof of purchase is required.

Download Catalog Download IFU

Eighteeth · Cordless curing light

CuringPen E Five modes.
Flexible curing control.

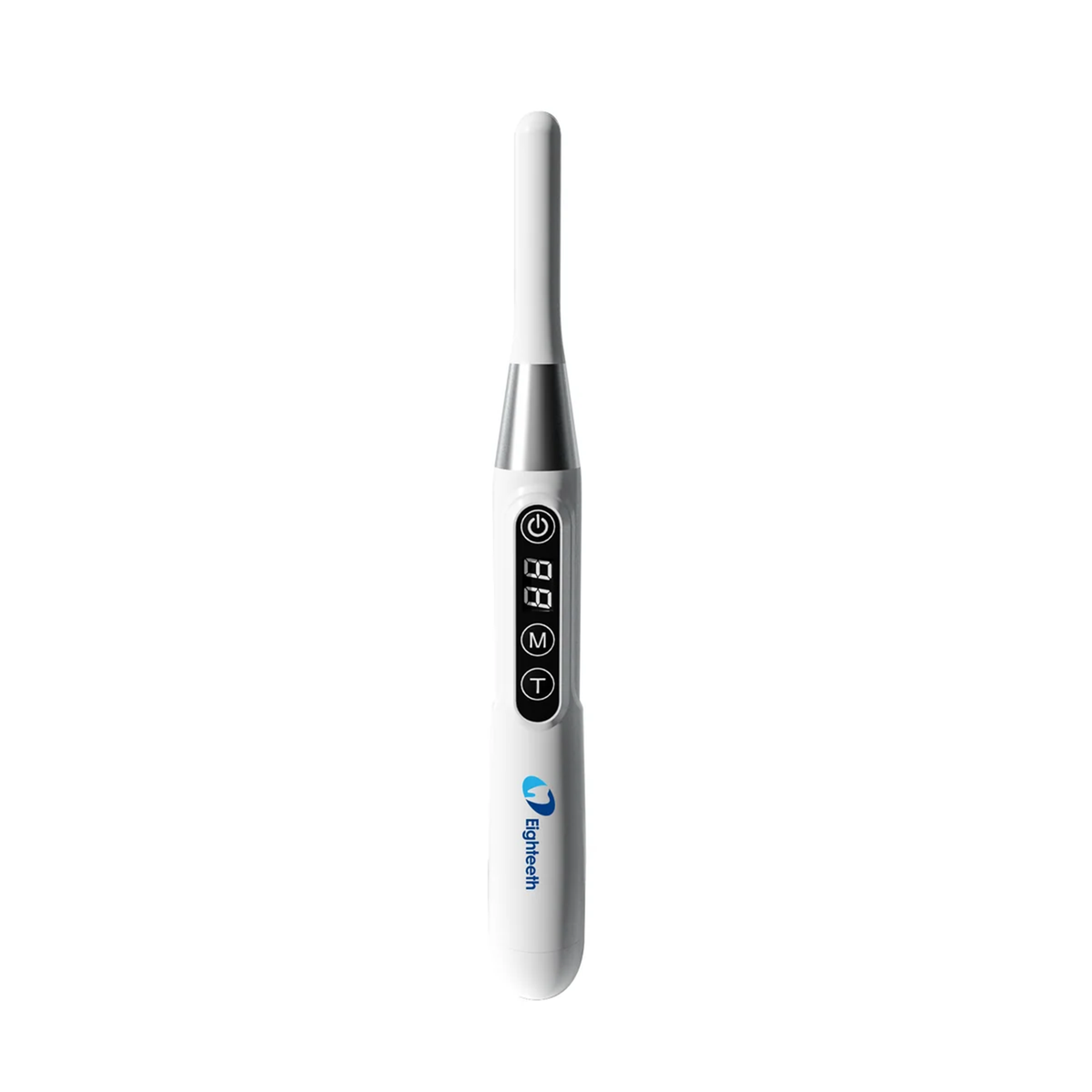

The Eighteeth CuringPen E is a cordless 3-LED curing light for dental resins and composites. Five preset modes, output up to 3000 mW/cm² and a 380–515 nm wavelength range provide flexible curing options, while a 360° rotating head and simple mode-and-time controls support convenient positioning and operation.

3-LED curing light Up to 3000 mW/cm² 5 preset modes 360° rotating head

Features & benefits

Explore the details

Click or tap to enlarge ↗

Cordless handling. Simple controls.

A pen-style light for restorative workflows

Cordless operation: Work without a power cable attached to the handpiece during treatment.
Dedicated mode and time keys: Use the M key to select a programme and the T key to choose an available exposure time.
Digital display and countdown: View the selected programme or exposure time, with a countdown during light output and audible prompts.

Click or tap to enlarge ↗

Five modes. Your choice of exposure.

Normal, High Power, Turbo, Pulse and Ramp

Three continuous-output options: P1 Normal delivers 1200 mW/cm², P2 High Power delivers 2000 mW/cm² and P3 Turbo delivers 3000 mW/cm².
Pulse and Ramp: P4 provides intermittent output at 1200 mW/cm²; P5 gradually increases to 1200 mW/cm² before continuing at that output.
Selectable exposure times: Each programme offers its own time options. The light intensity of each mode is preset and cannot be changed.

Click or tap to enlarge ↗

Position the light with confidence.

Broad spectral output and a rotating head

380–515 nm wavelength range: The manual specifies broad spectral output for curing compatible dental resins and composites. Check the restorative material’s light requirements.
360° rotating head: Rotate the light-source head without removing it to help direct the light while keeping the display visible.
Controlled positioning: Aim the light directly at the restoration and follow the material manufacturer’s guidance on distance, exposure time and increment thickness.

Click or tap to enlarge ↗

Recharge. Rest. Ready again.

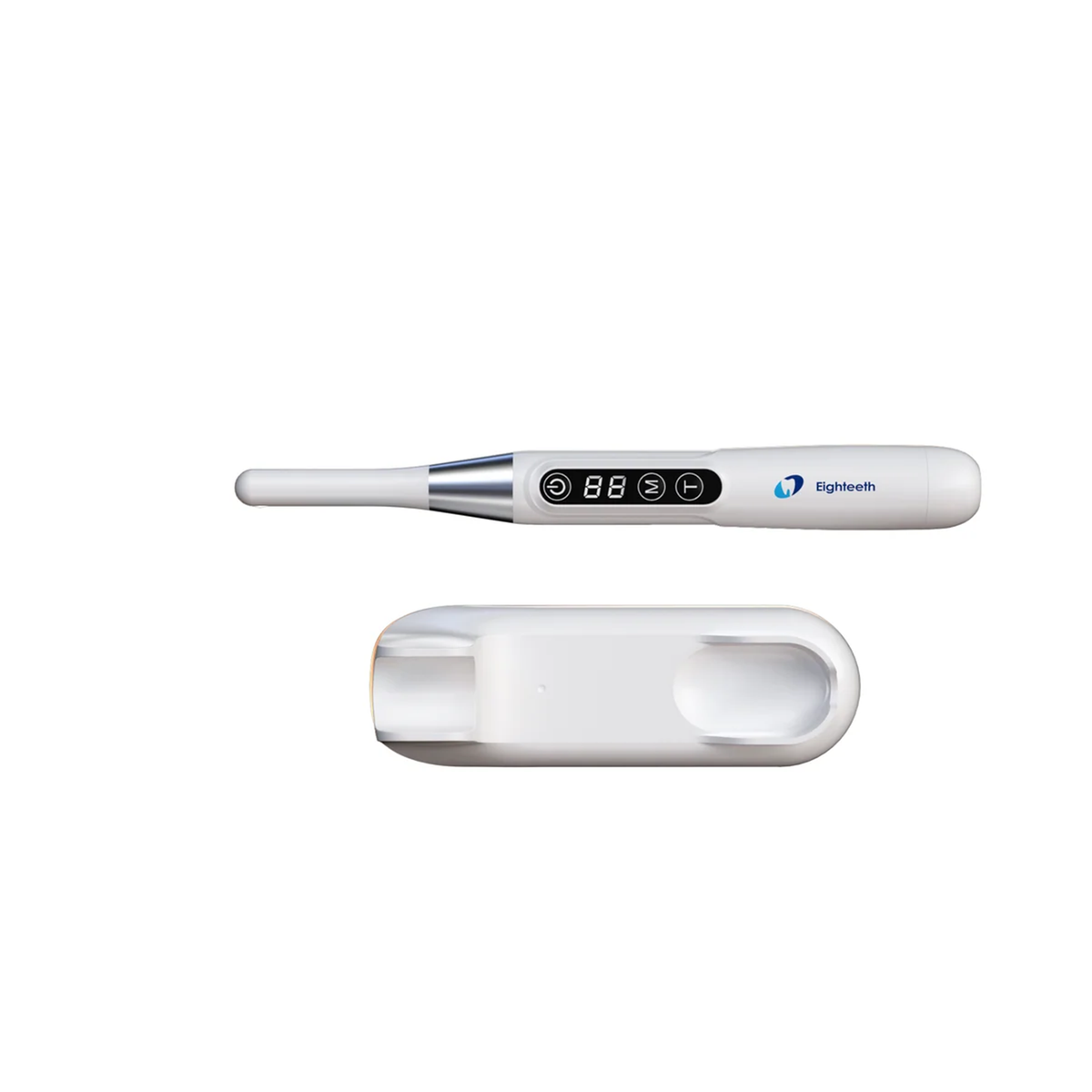

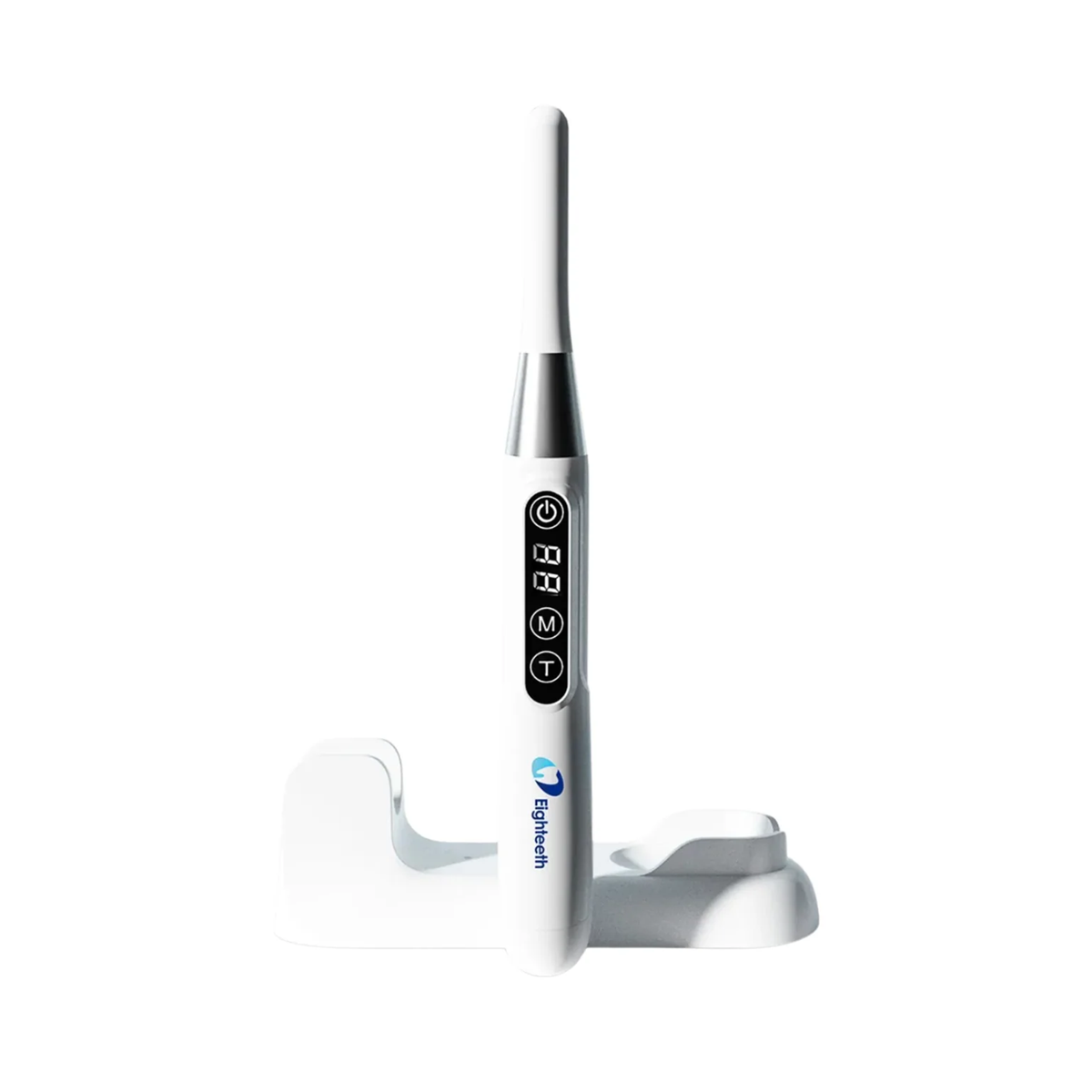

Direct charging with a separate handpiece stand

Rechargeable lithium-ion battery: A 3.7 V / 1400 mAh battery powers the handpiece. A full charge takes approximately 3 hours, depending on remaining charge and battery condition.
Direct adapter connection: Connect the original adapter to the charging port at the rear of the handpiece. The supplied base supports the handpiece; charging requires the adapter connection.
Automatic power-off: The device switches off after 120 seconds without operation.
Included protective essentials: A protective light shield and 100 disposable sleeves are supplied. Replace the sleeve after every use.

Choose the exposure for the material: high output does not mean every composite can be cured in 1 second or in a thicker increment. Curing time and depth depend on the material, shade, increment thickness, light position and output. Follow the restorative material manufacturer’s instructions.

Technical specifications

CuringPen E at a glance

Specification	Details
Model	CuringPen-E
Light source	3 LEDs
Wavelength	380–515 nm (wide-spectrum)
Light intensity	P1 / P4 / P5: 1200; P2: 2000; P3: 3000 mW/cm² (±15%)
Light-source head	360° rotation
Battery	Lithium-ion, DC 3.7 V / 1400 mAh (±10%)
Full charging time	Approximately 3 hours
Charging connection	Adapter connects directly to the rear of the handpiece
Automatic power-off	After 120 seconds without operation
Adapter	AC 100–240 V, 50/60 Hz; DC 5 V / 1 A output

Curing options

Modes and exposure times

Mode	Nominal intensity	Selectable time
P1 · Normal	1200 mW/cm²	5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 seconds
P2 · High Power	2000 mW/cm²	1 / 3 / 5 / 10 seconds
P3 · Turbo	3000 mW/cm²	1 / 3 / 5 seconds
P4 · Pulse	1200 mW/cm², intermittent	5 / 10 / 15 / 20 seconds
P5 · Ramp	Gradually increases to 1200 mW/cm²	5 / 10 / 15 / 20 seconds

Your CuringPen E kit

What’s included

Component	Quantity
CuringPen E handpiece	1
Light-source head	1
Handpiece base / stand	1
Protective light shield	1
Disposable sleeves	100
Power adapter	1
User manual	1

Supplied for use with North American electrical outlets. The adapter accepts AC 100–240 V, 50/60 Hz.

Warranty terms and conditions

Free Repair of Main Unit: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Request a loaner

Contact us with the product model, your clinic details and the reason for your request. Availability, eligibility, timing and any applicable charges will be confirmed individually. A request does not reserve or guarantee a loaner.

Request a loaner

Questions, answered

CuringPen E FAQ

Are the five modes customisable?

You can select the mode and one of its available exposure times. The light intensity of P1–P5 is preset and cannot be modified. This model does not use the M0, M1 and M2 customisable memories of the CuringPen 4 LED.

Can I cure every composite in 1 second?

No. A 1-second option is available in P2 and P3, but it is suitable only when the material manufacturer’s curing instructions support that exposure. Material type, shade, increment thickness and light positioning affect the required time.

Does CuringPen E have a Detect mode?

The supplied manual lists five modes: Normal, High Power, Turbo, Pulse and Ramp. It does not list a Detect mode.

What is the difference between Pulse and Ramp?

P4 Pulse delivers intermittent output at 1200 mW/cm². P5 Ramp gradually increases output to 1200 mW/cm² and then maintains that level.

Does placing the handpiece in the base charge it?

The adapter’s round connector must plug into the charging port at the rear of the handpiece. The base is a stand and does not replace this connection. Use only the original adapter.

How long does charging take?

The manual lists approximately 3 hours for a full charge, depending on remaining charge and battery condition, and instructs charging for at least 3 hours before first use. Other functions stop when the device enters charging status.

How should it be cleaned between patients?

Discard the disposable sleeve after each use. Clean and disinfect the handpiece, light-source head, base and protective shield according to Section 8 of the manual. Follow the specified disinfection procedure rather than substituting an autoclave cycle.

What protection is required during treatment?

Use the protective light shield and a disposable sleeve as specified in the manual, and wear gloves. Avoid direct light exposure to the eyes or skin. Follow the manual’s heat precautions and allow the required cooling period after repeated high-output use.

Equipment guide

Compare related equipment

Compare the specifications available for each model. Missing specifications are shown as an em dash.

Add a device to compare

Equipment specifications side-by-side comparison
Specification	Eighteeth Curing Light CuringPen E 3 LED	Select a model
Light source	3 LEDs	—
Wavelength	380–515 nm	—
Maximum intensity	Up to 3000 mW/cm² (±15%)	—
Output levels	1200 / 2000 / 3000 mW/cm² (±15%)	—
Modes	P1 Normal, P2 High Power, P3 Turbo, P4 Pulse, P5 Ramp	—
Light head	360° rotation	—
Battery	Lithium-ion, 3.7 V / 1400 mAh (±10%)	—
Full charging time	Approximately 3 hours	—
Weight	109 g	—
Light head size	⌀13 mm	—
Warranty	Main unit repair: 1 year; accessory parts: 6 months; consumables: no warranty.	—
Price	$249.99 CAD	—
