Name: Eighteeth Apex Locator AirPex
Brand: Eighteeth
Price: 249.99 CAD
Availability: OutOfStock

Eighteeth Apex Locator AirPex

$249.99 CAD

Detailed product information

Specifications, clinical guidance, documents and safety information are available below.

View product details

Eighteeth · coming-soon

Eighteeth Apex Locator AirPex

$249.99 CAD

Out of stock

We will work quickly to ship your order as soon as possible. All orders ship free with no minimum order quantity. Express shipping is available for an additional fee.

Return eligible items within 30 days of delivery. We offer free returns, making the process simple and hassle-free.

To be eligible for a return, your item must be unused, unopened, in the same condition as received, and in its original packaging. You'll also need the receipt or proof of purchase.

Trying one of our endodontic file systems for the first time? We want you to purchase with confidence. If the system is not well suited to your clinical technique, contact us within 30 days of purchase. We will help you select a more suitable option or provide an exchange or refund in accordance with our return policy.

Applies to first-time purchases of eligible products. Maximum one opened pack per product system. Proof of purchase is required.

Download Catalog Download IFU

Eighteeth · Electronic apex locator

AirPex Compact design.
Clear apical feedback.

The Eighteeth AirPex is a compact, rechargeable apex locator designed for convenient patient-side positioning. Wireless charging, a reversible display, adjustable reference points and audible feedback help you follow file progression during electronic working-length assessment.

Wireless charging Reversible display 7 reference selections Rechargeable

Features & benefits

Explore the details

Click or tap to enlarge ↗

Apical feedback, close at hand

A compact electronic apex locator

Visual progression indicators: Follow the measuring bar and apical display as the file advances.
Audible feedback: Changing sound patterns complement the on-screen indicators.
Reference-point selection: Choose from seven reference positions within the device’s displayed 0–1 range; these are not prescribed clinical endpoints.

Click or tap to enlarge ↗

A simpler patient-side setup

Keep the locator near the working area

Compact positioning: The included clip helps secure AirPex at the patient’s collar.
Direct accessory connections: Connect the lip hook and file clip or touch probe to the locator, using extension cords when needed.
Reversible display: Reverse the screen orientation to suit the position of the unit.

Click or tap to enlarge ↗

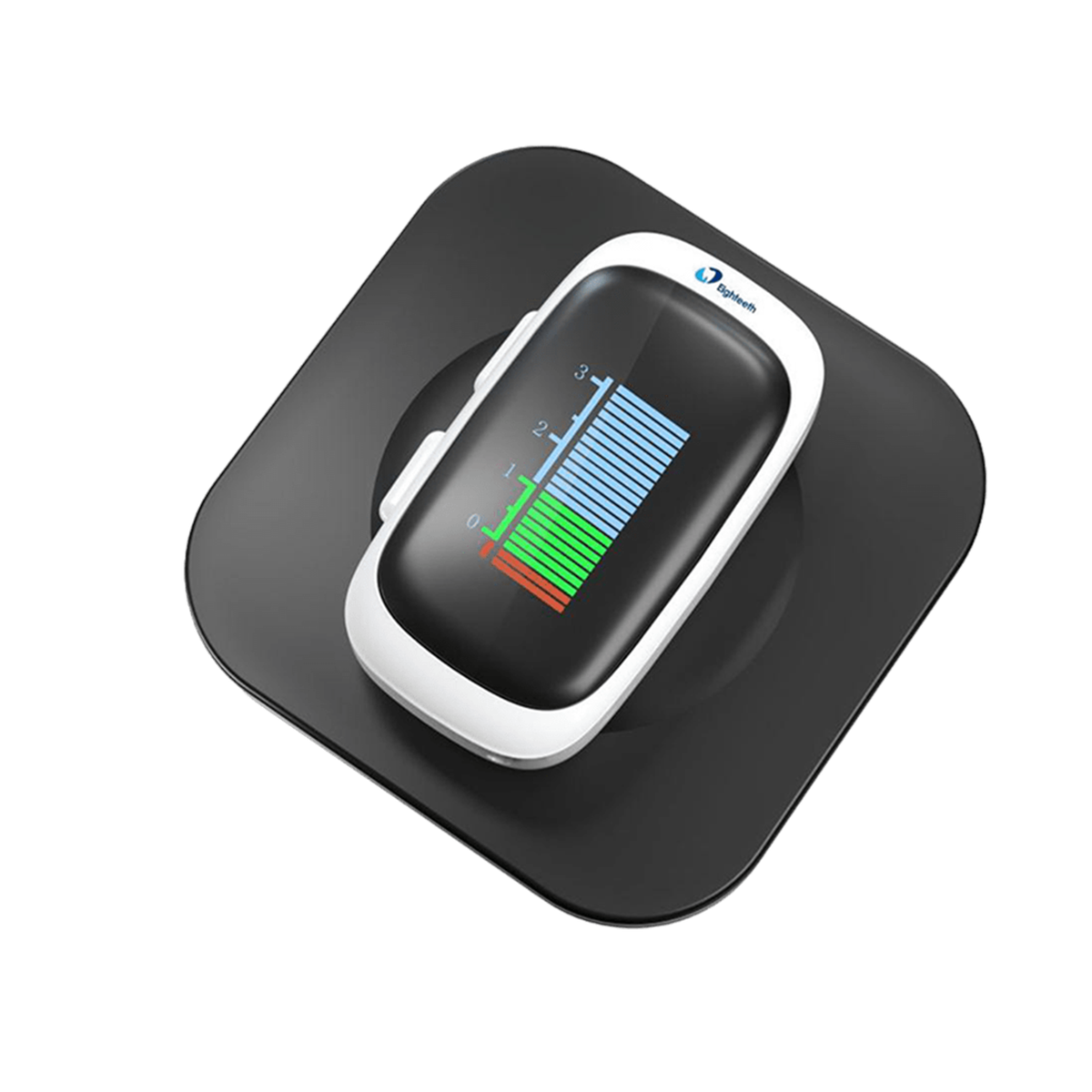

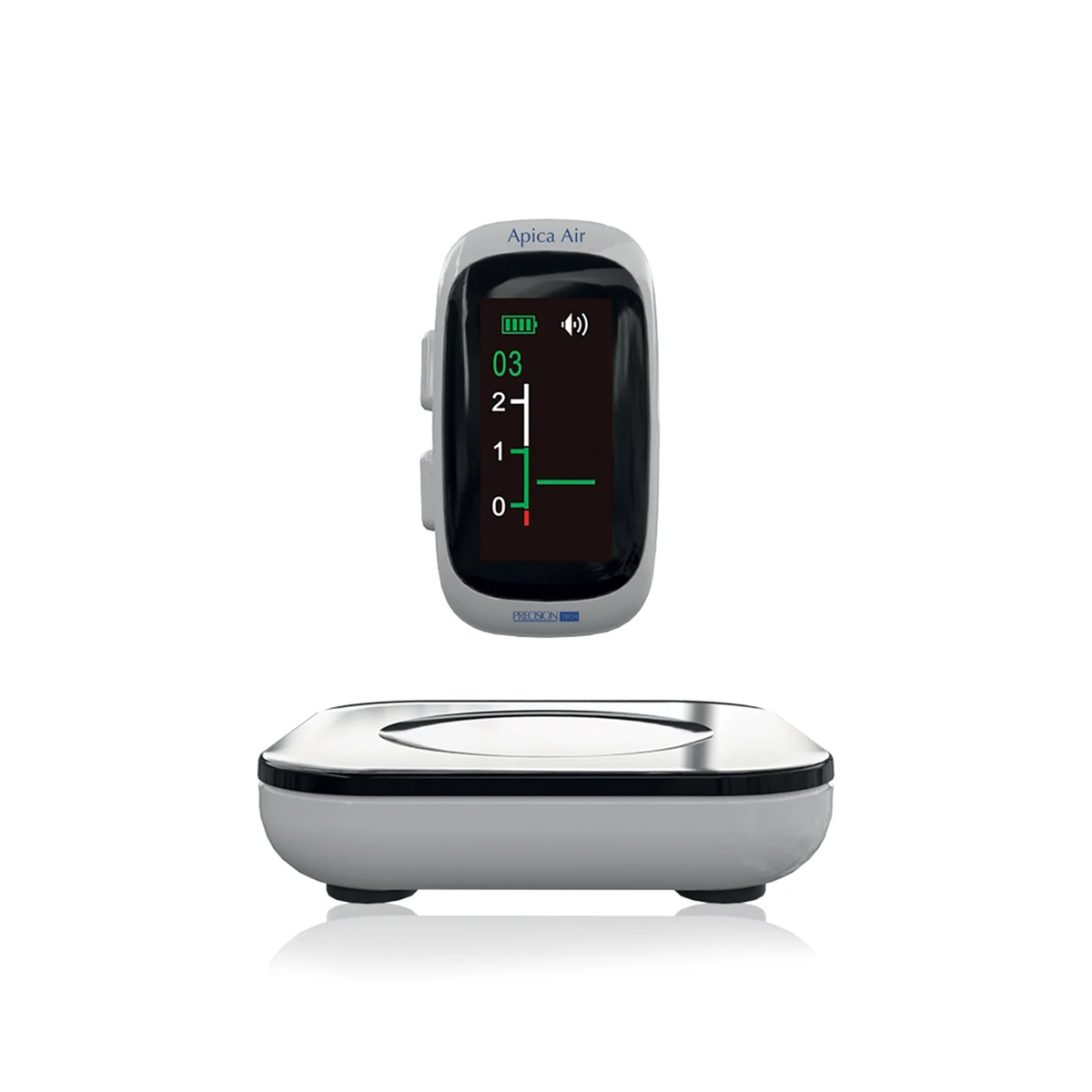

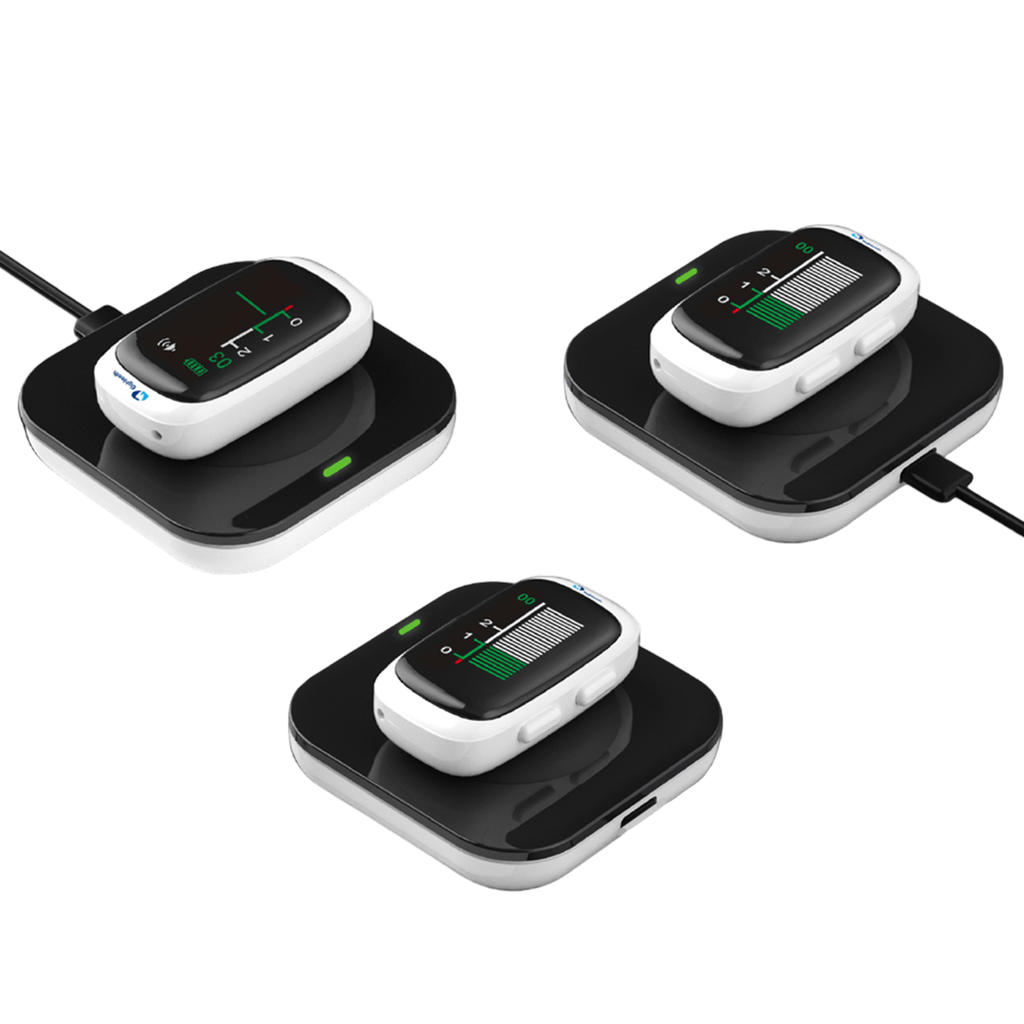

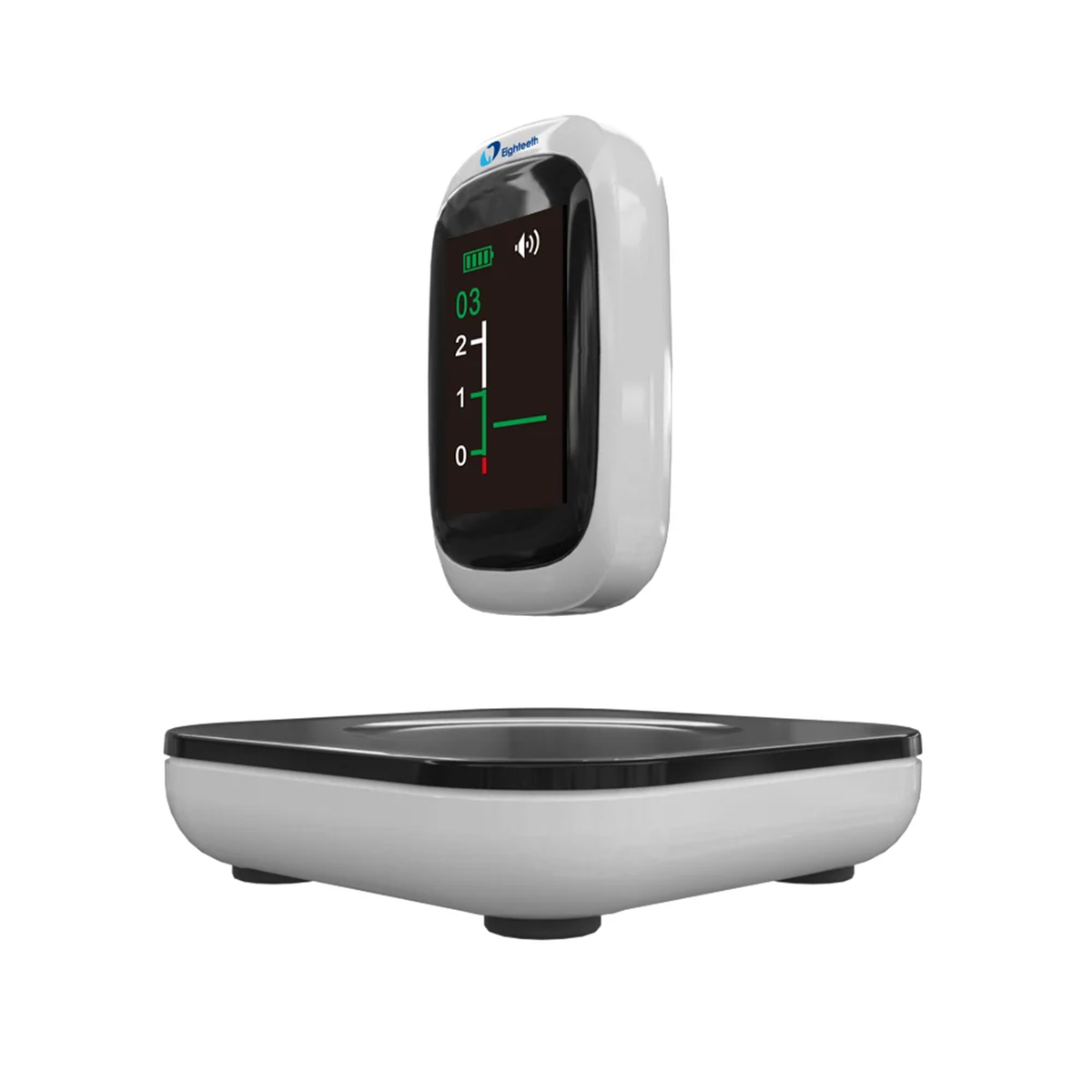

Place it down. Charge it up.

Wireless charging with a dedicated base

Charging-base convenience: Place AirPex in the charging groove of its powered base to recharge.
On-screen battery indication: View the remaining charge and charging status on the unit.
Rechargeable lithium-polymer battery: 3.7 V / 110 mAh battery; approximately 4–5 hours for a full charge, depending on battery condition and remaining charge.

Click or tap to enlarge ↗

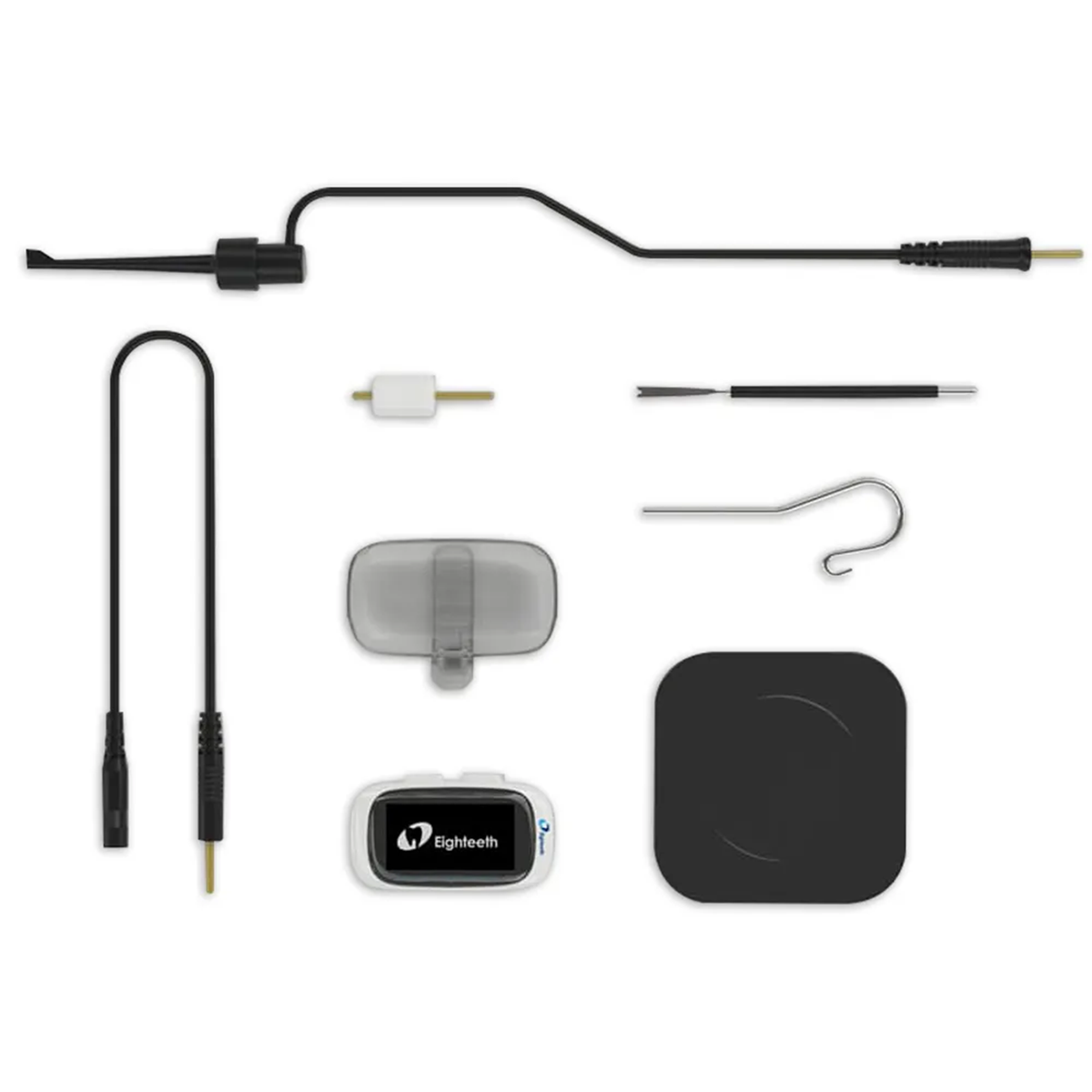

Practical measuring accessories

Choose the connection that suits access

File clips: Attach a file clip to the conductive metal handle of the endodontic file.
Touch probe: The supplied touch probe provides an alternative to the file clip.
Extension cords and tester: Two extension cords support flexible positioning; the supplied tester supports the manufacturer’s function-check procedure.

Click or tap to enlarge ↗

A clip finish to suit your setup

Air, Sky and Sunrise

Manufacturer colour range: The clip is illustrated in Air, Sky and Sunrise finishes.
Secure placement: The clip holds the compact locator during patient-side use.
Selected configuration: One clip is included. The finish supplied depends on the selected option and stock availability.

Understanding the readings: the display indicates file progression toward the apex. Distance indications are estimates, not direct canal-length measurements. Confirm working length using the manufacturer’s instructions, radiographs and other appropriate clinical checks.

Technical specifications

AirPex at a glance

Specification	Details
Device	Standalone electronic apex locator
Reference settings	Seven selectable points within the displayed 0–1 range
Display and feedback	Reversible display, measuring bar, battery indicator and adjustable sound
Battery	Lithium-polymer, 3.7 V / 110 mAh (±10%)
Full charging time	Approximately 4–5 hours
Charging	Wireless charging base with mains-powered adapter
Adapter	Input AC 100–240 V, 50/60 Hz; output DC 5 V / 1 A
Automatic power-off	After 3 minutes without operation
Package dimensions	130 × 110 × 80 mm (±10 mm)
Gross packaged weight	0.35 kg (±10%)
Ingress protection / electrical class	IPX0 / Class II

Your AirPex kit

What’s included

Component	Quantity
AirPex apex locator	1
Charging base	1
Positioning clip	1
Lip hooks	2
Touch probe	1
File clips	2
Extension cords	2
Tester	1
Power adapter with North American plug	1 set

Supplied with a North American plug for standard Canadian and U.S. outlets. The adapter accepts AC 100–240 V, 50/60 Hz.

Warranty terms and conditions

Free Repair of Main Unit: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Request a loaner

Contact us with the product model, your clinic details and the reason for your request. Availability, eligibility, timing and any applicable charges will be confirmed individually. A request does not reserve or guarantee a loaner.

Request a loaner

Questions, answered

AirPex FAQ

What does “wireless” mean for AirPex?

AirPex is a compact rechargeable locator with wireless charging. The measuring circuit still uses a lip hook and file clip or touch probe, with extension cords when needed. The charging base connects to a power adapter.

Can I adjust the reference point and display orientation?

Yes. The manual provides seven reference-point selections within the displayed 0–1 range, adjustable sound and a reversible display. Follow the manual when selecting and interpreting the reference point.

Does the display measure canal length directly in millimetres?

No. The manual states that the measured value indicates file progression and that reference distances are estimates. Electronic readings require clinical interpretation and appropriate working-length confirmation.

How long does charging take?

The manual lists approximately 4–5 hours for a full charge, depending on remaining charge and battery condition. Place the unit correctly in the powered charging base and use the specified original adapter.

Can I use AirPex while it is charging?

No. The manufacturer instructs you not to use the device while charging.

Which components must be sterilised?

The file clips, lip hooks, touch probe and extension cords require cleaning, disinfection and sterilisation before first use and after each use according to the manual. Do not autoclave the electronic unit or charging base.

How do I check that AirPex is working?

Perform the short-circuit check before each use and the tester check at the intervals specified in Section 6.2. If the expected indication is not obtained after checking connections, stop using the device and contact your dealer.

Does AirPex replace radiographs?

The manual states that apex-location readings must be combined with radiographs and other methods to determine working length. The device supports the clinician’s assessment.

Are all three clip colours supplied?

No. The kit contains one positioning clip. Air, Sky and Sunrise illustrate the manufacturer’s colour range; the supplied finish depends on the selected option and availability.

Equipment guide

Compare related equipment

Compare the specifications available for each model. Missing specifications are shown as an em dash.

Add a device to compare

Equipment specifications side-by-side comparison
Specification	Eighteeth Apex Locator AirPex	Select a model
Device type	Standalone electronic apex locator	—
Reference setting	Seven selectable reference points within the 0–1 range	—
Battery	Lithium-polymer, 3.7 V / 110 mAh (±10%)	—
Full charging time	About 4–5 hours	—
Package dimensions	130 × 110 × 80 mm (±10 mm)	—
Device weight	15 g	—
Gross package weight	0.35 kg (±10%)	—
Protection / electrical class	IPX0 / Class II	—
Warranty	Main unit repair: 1 year; accessory parts: 6 months; consumables: no warranty.	—
Price	$249.99 CAD	—
