Name: Eighteeth Endo Motor E-Connect S
Brand: Eighteeth
Price: 1199.99 CAD
Availability: OutOfStock

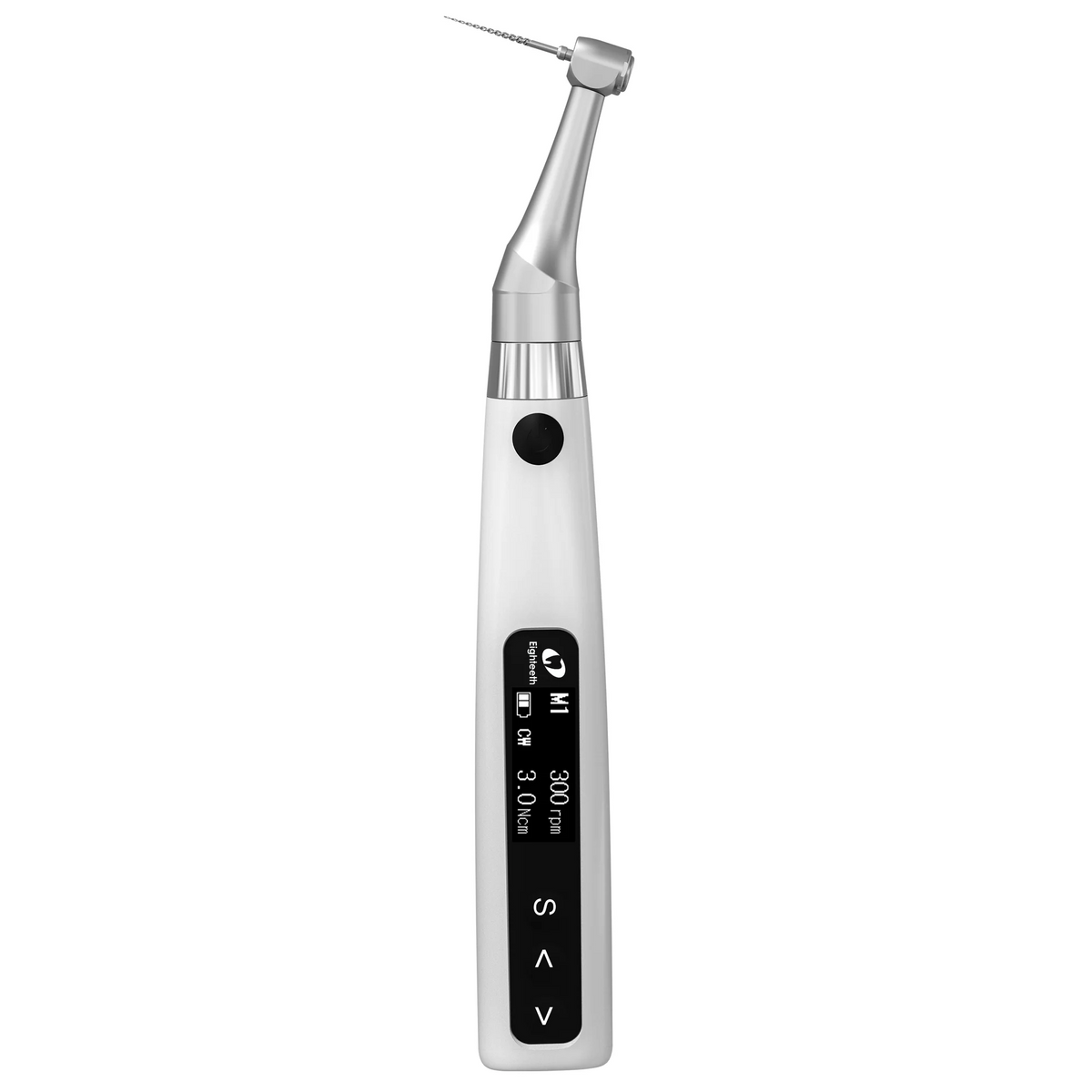

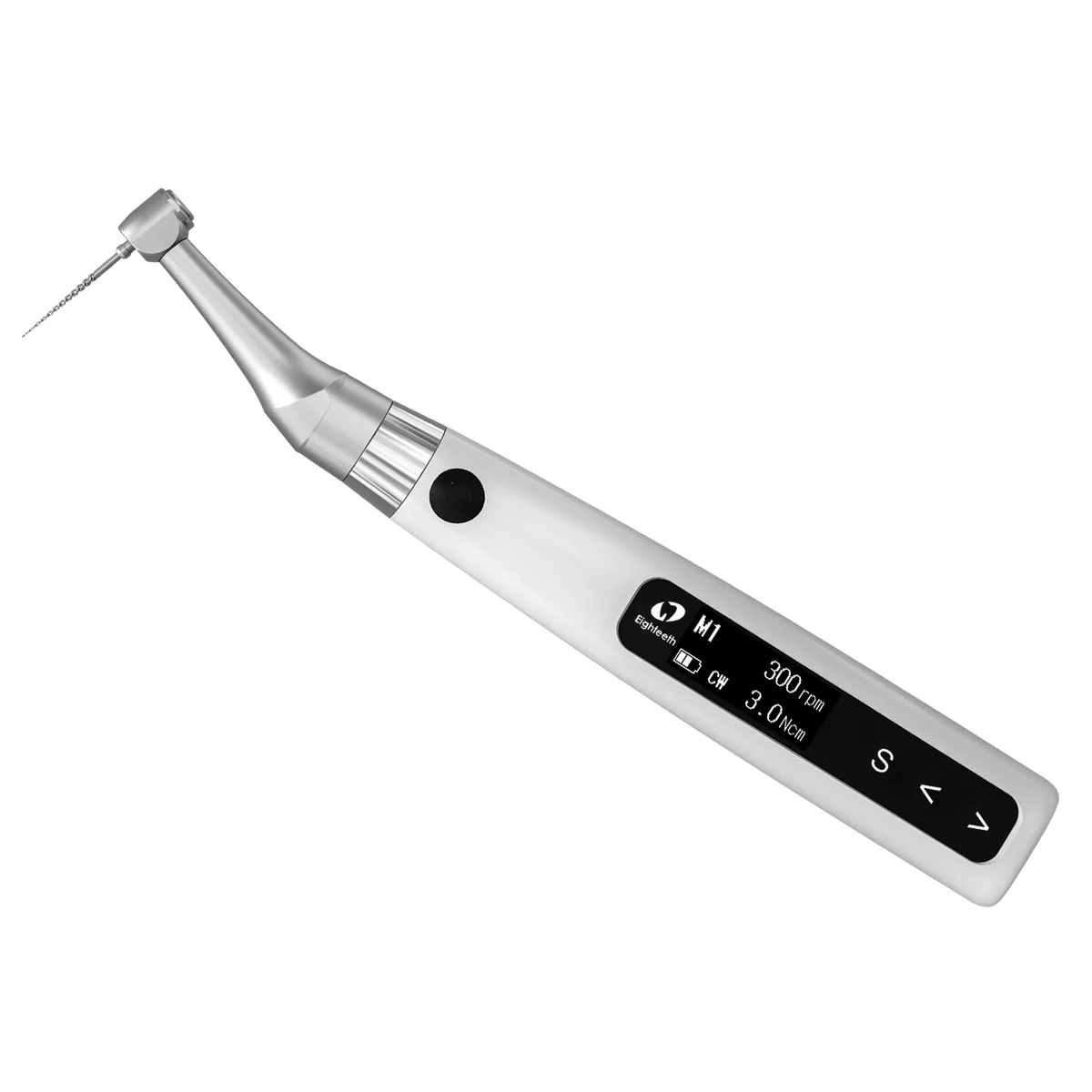

Eighteeth Endo Motor E-Connect S

$1,199.99 CAD

Detailed product information

Specifications, clinical guidance, documents and safety information are available below.

View product details

Eighteeth · coming-soon

Eighteeth Endo Motor E-Connect S

$1,199.99 CAD

Out of stock

We will work quickly to ship your order as soon as possible. All orders ship free with no minimum order quantity. Express shipping is available for an additional fee.

Return eligible items within 30 days of delivery. We offer free returns, making the process simple and hassle-free.

To be eligible for a return, your item must be unused, unopened, in the same condition as received, and in its original packaging. You'll also need the receipt or proof of purchase.

Trying one of our endodontic file systems for the first time? We want you to purchase with confidence. If the system is not well suited to your clinical technique, contact us within 30 days of purchase. We will help you select a more suitable option or provide an exchange or refund in accordance with our return policy.

Applies to first-time purchases of eligible products. Maximum one opened pack per product system. Proof of purchase is required.

Download Catalog Download IFU

Eighteeth · Cordless endodontic motor

E-Connect S Shape with control.
Keep the apex in view.

The Eighteeth E-Connect S Cordless Endodontic Motor combines a brushless endodontic handpiece with a built-in apex locator. Monitor file-tip position during canal preparation, use the apex locator independently, and configure automatic start/stop and apical control functions—all from one compact, rechargeable unit.

Built-in apex locator Brushless motor Rotary & reciprocating 1500 mAh battery

Features & benefits

Explore the details

Click or tap to enlarge ↗

Apex location built in

Motor and electronic apex locator in one device

Integrated measurement: Monitor file-tip progression while using the motor to prepare the canal.
Stand-alone apex locator: Use the same handpiece for manual electronic apex measurement with the measuring wire and file clip.
Brushless motor: The handpiece combines motor-driven instrumentation with electronic apex-location feedback.
Compact 1:1 contra-angle: A miniature head and adjustable orientation support visibility and access.

Click or tap to enlarge ↗

Keep file position in view

Real-time feedback during instrumentation

Visual apex display: The indicator bar and enlarged apical display help you follow the file’s progression.
Automatic start and stop: Configurable functions can start the motor when the file enters the canal and stop it when withdrawn, with the measurement circuit correctly connected.
Apical reverse: Configure the motor’s response when the file reaches the selected reference point.
Apical slow-down: An adjustable apical control function reduces motor speed near the reference region.

Click or tap to enlarge ↗

Select the movement for your files

Rotary, reciprocating and adaptive control

FWD and REV: Continuous forward or reverse rotation.
REC: Reciprocating motion with configurable forward and reverse angles.
ATC: Adaptive Torque Control: Switches to reciprocating motion when the preset torque is reached, then returns to forward rotation as the load decreases.
File-system presets: Recall pre-set configurations, then verify speed, torque and movement against the selected file’s instructions.

Click or tap to enlarge ↗

Designed around everyday handling

Clear information and flexible positioning

OLED display: View the selected settings, torque feedback and apex-location information on the handpiece.
Ambidextrous screen: Adjust display orientation for left- or right-handed use.
Torque calibration: A calibration function supports the motor’s torque output.
Rechargeable battery: A 1500 mAh lithium battery powers cordless motor operation.

Click or tap to enlarge ↗

Your settings, ready to recall

A compact system with practical adjustment ranges

120–1000 rpm: Select the speed appropriate to the operating mode and file system.
0.5–4.0 N·cm: Adjust the torque setting within the range supported by the selected mode and speed.
Ten shaping memories: M1–M10 store working configurations; M0 is the separate apex-locator mode.

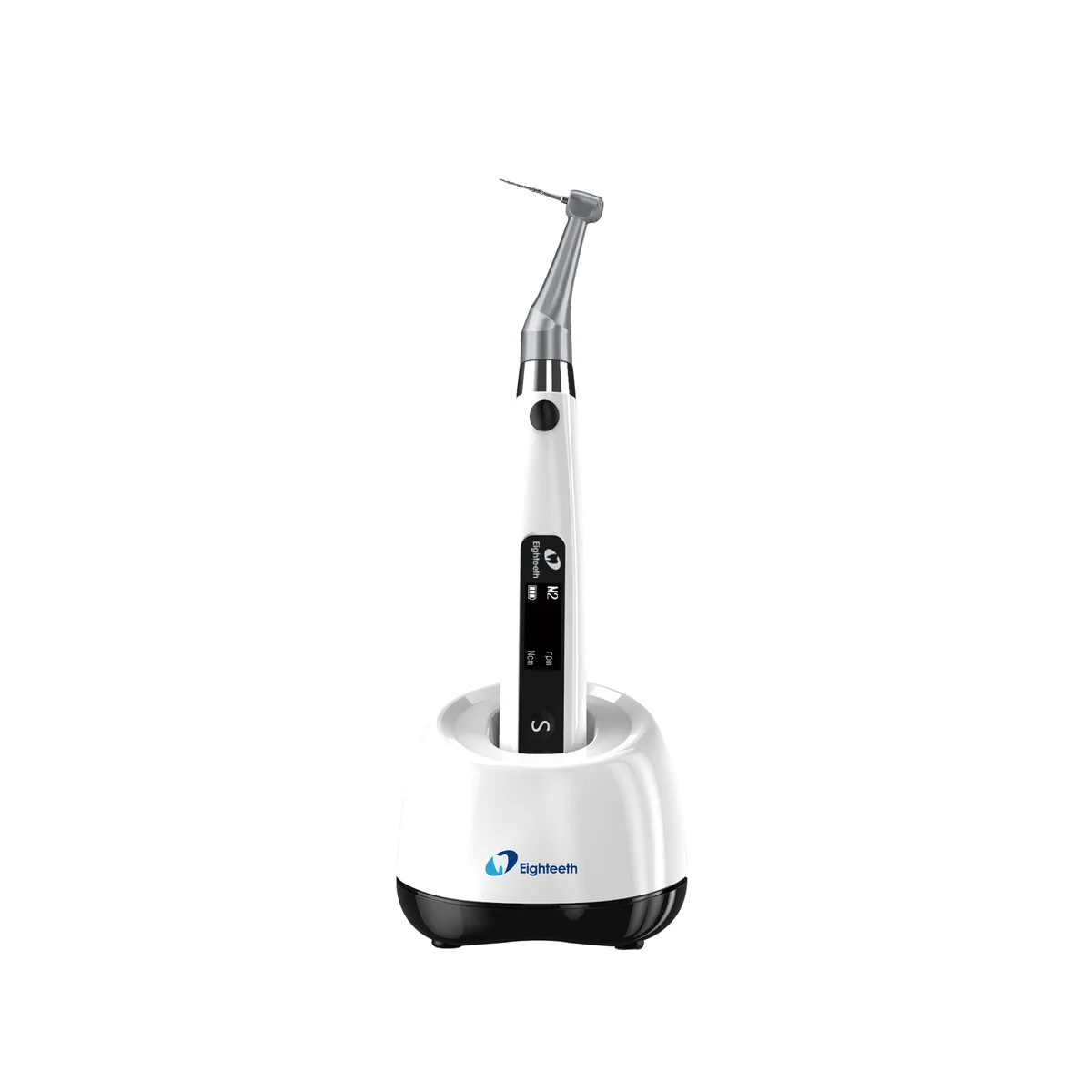

Charging base: Return the handpiece to its charging base between uses as directed in the manual.

Working-length feedback: electronic indicators show file position and require clinical interpretation. Use the apex locator with the specified measuring accessories and confirm working length in accordance with the manufacturer’s instructions.

Technical specifications

E-Connect S at a glance

Specification	Details
Motor	Cordless, brushless endodontic motor
Apex locator	Built in; integrated motor measurement and stand-alone EAL operation
Movement modes	FWD / REV / REC / ATC
Speed range	120–1000 rpm; available settings depend on the movement mode
Torque range	0.5–4.0 N·cm; available settings depend on mode and speed
Memory	10 shaping memories (M1–M10), plus M0 for stand-alone apex location
Contra-angle	1:1 ratio; miniature head with 360° adjustable orientation
Display	OLED, with left/right-handed orientation
Battery	Lithium-ion, 3.7 V / 1500 mAh
Adapter	AC 100–240 V, 50/60 Hz; output DC 5 V / 1 A

Your E-Connect S kit

What’s included

Component	Quantity
E-Connect S motor handpiece	1
Charging base	1
Contra-angle	1
Measuring wire	1
Lip hooks	2
File clips	2
Insulating sleeve	1
Spray nozzle	1
Power adapter and plug	1 set
Apex tester	1

The supplied power plug is for North American outlets. The adapter accepts AC 100–240 V, 50/60 Hz.

Warranty terms and conditions

Free Repair of Main Unit: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Setup and installation support

Please Note: While CanDent Group doesn't handle product installation, we are here to support you! Most of our devices are highly user-friendly and come with standard parts, though a few complex setups might need special connectors or technical expertise. We don't provide hands-on setup, but our team is always ready to answer your questions and share tips to make your installation as smooth as possible.

Request a loaner

Contact us with the product model, your clinic details and the reason for your request. Availability, eligibility, timing and any applicable charges will be confirmed individually. A request does not reserve or guarantee a loaner.

Request a loaner

Watch and learn

Product videos

E-Connect S Operation

Watch on YouTube ↗

Contra Angle Maintenance

Watch on YouTube ↗

Questions, answered

E-Connect S FAQ

Does E-Connect S have a built-in apex locator?

Yes. E-Connect S combines an endodontic motor and an integrated electronic apex locator in the handpiece. It supports apex-location feedback during motor operation and a separate stand-alone apex-locator mode.

Do I need a separate E-PEX apex locator?

E-Connect S has its own built-in apex locator, so an external E-PEX unit is not required for this function. The specified measuring wire and lip hook are still needed.

Can I use it only as an apex locator?

Yes. M0 is the stand-alone electronic apex-locator mode. Connect the specified measuring wire, lip hook and file clip according to the manual.

Is the apex measurement completely wireless?

The motor handpiece is cordless, but apex measurement uses the measuring wire and lip hook. Stand-alone measurement also uses the file clip.

Which movements does the motor support?

The motor supports FWD, REV, REC and ATC. Choose the movement and parameters specified by the file manufacturer; a file’s physical fit does not by itself establish that every motor setting is appropriate.

What does Adaptive Torque Control do?

ATC changes from forward rotation to reciprocating motion when the preset torque threshold is reached, then resumes forward rotation when the load decreases.

Does the built-in apex locator replace radiographs?

Electronic apex-location feedback supports working-length assessment. Follow the manufacturer’s instructions and the clinician’s required confirmation procedures, including radiographic checks where appropriate.

Can it be used by left-handed operators?

Yes. The display orientation can be changed for left- or right-handed use, and the contra-angle orientation can be adjusted.

Where can I find the instructions and accessories?

Use the E-Connect S manual and catalogue buttons near the product details. Available videos and compatible accessories are listed below. Contact CanDent Group if you need help selecting measuring accessories or a replacement contra-angle.

Equipment guide

Compare related equipment

Compare the specifications available for each model. Missing specifications are shown as an em dash.

Add a device to compare

Eighteeth E-Connect S Eighteeth E-value E Eighteeth E-xtreme

Equipment specifications side-by-side comparison
Specification	Eighteeth Endo Motor E-Connect S	Select a model	Select a model
Motor	Cordless, brushless endodontic motor	—	—
Built-in apex locator	Built in; integrated motor measurement and stand-alone EAL operation	—	—
Movement modes	FWD / REV / REC / ATC	—	—
Speed range	120–1,000 rpm; available settings depend on mode	—	—
Torque range	0.5–4.0 N·cm; available settings depend on mode and speed	—	—
File-system presets	Not specified in the supplied product information	—	—
Memory programs	10 shaping memories (M1–M10), plus M0 for stand-alone apex location	—	—
Contra-angle	1:1 ratio; miniature head; 360° adjustable orientation	—	—
Handpiece weight (with contra angle)	Not specified in the supplied product information	—	—
Display	OLED; left/right-handed orientation	—	—
Battery	Lithium-ion, 3.7 V / 1,500 mAh	—	—
Warranty	Main unit repair: 1 year; accessory parts: 6 months; consumables: no warranty.	—	—
Price	$1,199.99 CAD	—	—

Choose a device above to compare specifications.
