Eighteeth · Cordless endodontic motor

E-xtreme Preset your system.
Focus on the procedure.

The Eighteeth E-xtreme is a compact, rechargeable endodontic motor with continuous rotation and reciprocation. Select a supported file-system preset and the device automatically loads its operating mode, speed and torque, so you do not need to enter each setting manually. Preset options include NIC, ProTaper, WaveOne Gold and Reciproc Blue systems.

File-system presets FWD / REV / REC 120–650 rpm 99 g handpiece*
Features & benefits

Explore the details

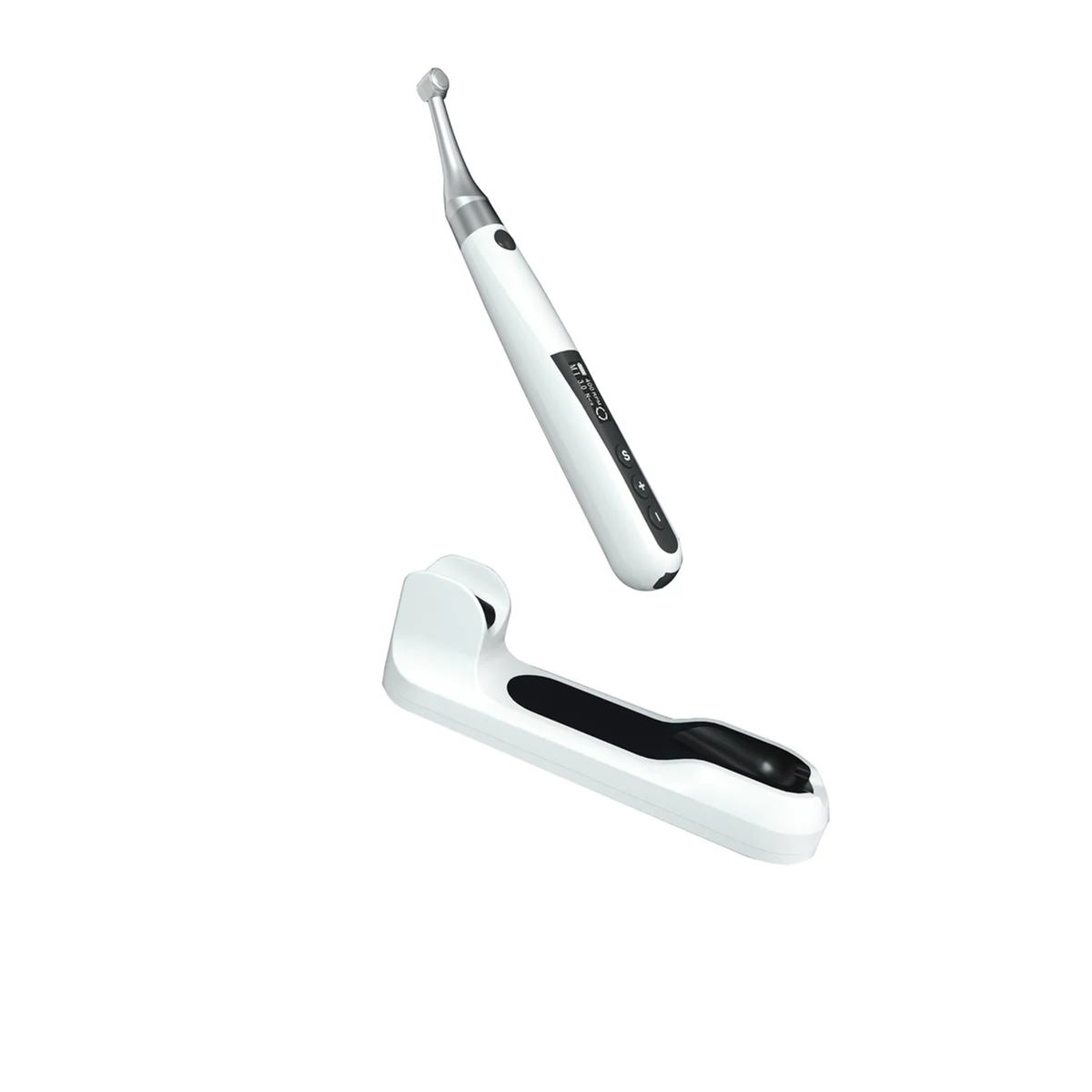

Eighteeth E-xtreme cordless endodontic motor and handpiece base Click or tap to enlarge ↗

Choose the movement for your files

Continuous rotation and reciprocation in one motor

  • FWD and REV: Continuous clockwise or counter-clockwise rotation.
  • REC: Reciprocating movement for compatible files.
  • Five fixed reciprocating programs: Select from the angle combinations available in M0.
  • 10 memory modes: M0–M9 provide separate memory and reciprocating options.
Eighteeth E-xtreme E-CAN Mini contra-angle with 360-degree rotation Click or tap to enlarge ↗

Mini contra-angle for visibility

Rotate the contra-angle to adjust your viewing position

  • 360° orientation: Rotate the contra-angle without removing it from the handpiece.
  • Mini head and slim neck: Designed for visibility and posterior access.
  • File compatibility: The manual specifies a 2.35 mm ISO 1797:2017 Type 1 file shank.
  • File lengths: Compatible lengths are listed as 11–31 mm in the manual.
Eighteeth E-xtreme with built-in file-system presets Click or tap to enlarge ↗

Presets for familiar file systems

Select a supported system and load its settings

  • Preset options: NIC, ProTaper, WaveOne Gold, Reciproc Blue and other supported systems.
  • Automatic parameter loading: A selected preset loads the operating mode, speed and torque.
  • Manual examples: The supplied manual shows ProTaper SX/S1, ProTaper S2, One Shape, One Flare and One Curve.
  • Memory assignment: Preset programs can replace memory modes M1–M9.

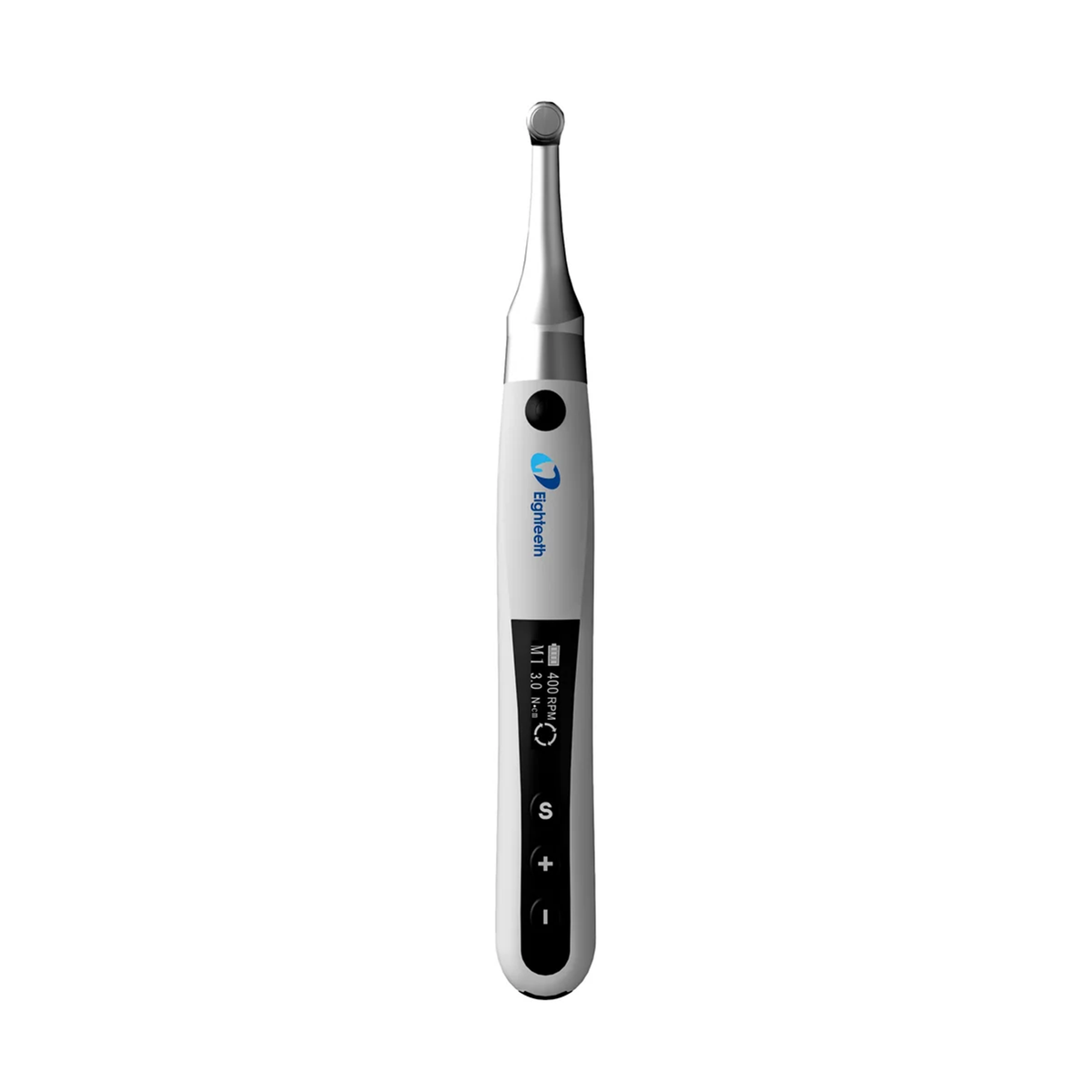

Eighteeth E-xtreme lightweight cordless motor handpiece Click or tap to enlarge ↗

Lightweight cordless handling

A slim handpiece for everyday endodontic use

  • 99 g handpiece*: The supplied Eighteeth product image lists a weight of 99 g.
  • Rechargeable battery: Lithium-ion, 3.7 V / 800 mAh (±10%).
  • Compact display: See the selected memory, speed, torque and operating mode.
  • Use without a power cable: The rechargeable battery powers cordless operation.

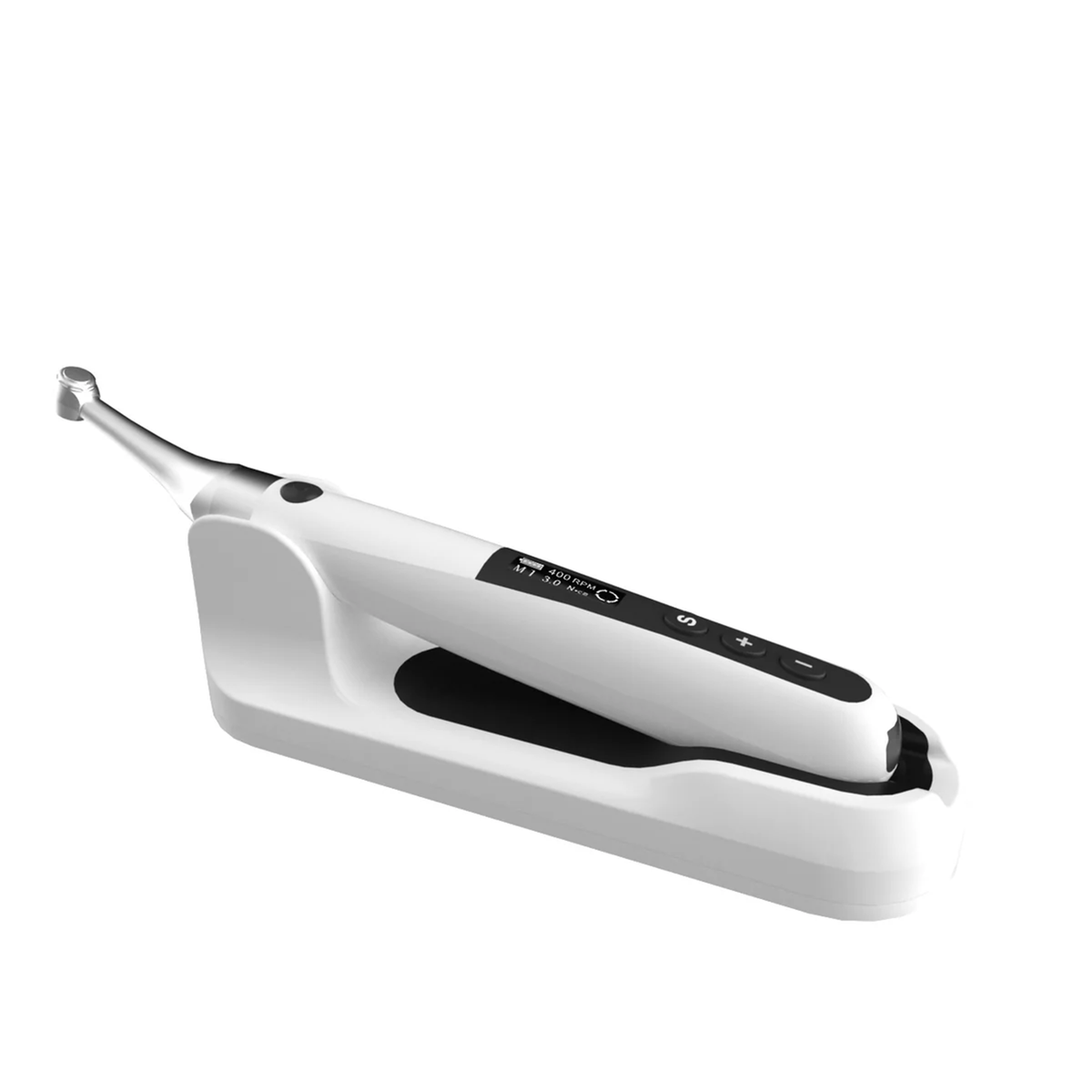

Eighteeth E-xtreme endodontic motor and handpiece base Click or tap to enlarge ↗

Practical settings and adjustment

Set parameters within the range supported by each mode

  • 120–650 rpm: Select from the speed range supported by the operating mode.
  • 0.5–4.0 N·cm: Torque options depend on mode and selected speed.
  • Quieter operation: Eighteeth describes the motor as quieter; no decibel rating is specified in the supplied materials.
  • Charging: Use the original adapter; do not treat while the motor is charging.
Confirm settings for the exact file: Presets provide a convenient starting configuration. Follow the file manufacturer’s instructions for speed, torque and movement, and verify the selected values before treatment.
Technical specifications

E-xtreme at a glance

Specification Details
Motor Cordless endodontic motor
Apex locator No built-in apex locator
Movement modes FWD / REV continuous rotation; REC reciprocation
Speed range 120–650 rpm; available settings depend on operating mode
Torque range 0.5–4.0 N·cm; available settings depend on mode and speed
Preset programs Common file-system presets automatically load operating mode, speed and torque; presets can be assigned to M1–M9
Memory modes 10 modes, M0–M9; M0 is the dedicated reciprocating mode
Reciprocating angles Five fixed M0 combinations: 30°/150°, 150°/30°, 180°/30°, 210°/30° and 250°/30°
Contra-angle 360° adjustable orientation; mini head and slim neck
Compatible file shank 2.35 mm, ISO 1797:2017 Type 1; file lengths 11–31 mm
Handpiece weight 99 g, as listed in the supplied Eighteeth product image*
Battery Lithium-ion, 3.7 V / 800 mAh (±10%)
Adapter AC 100–240 V (±10%), 50/60 Hz; output DC 5 V / 1 A
Operation duty Intermittent operation: 60 minutes working / 5 minutes stopping
Outer-box dimensions 17.5 × 10.9 × 8.4 cm (±1 cm)
Gross package weight 0.6 kg (±15%)
Protection IPX0; Class II and internally powered equipment; Type B applied part
Your E-xtreme kit

What’s included

Component Quantity / notes
Motor handpiece 1
Handpiece base 1
Contra-angle 1
Adapter 1
Spray nozzle 1
User manual 1
Certificate 1
Warranty card 1
Insulating sleeve Optional
Root canal files Not included
Use the original adapter and do not use the motor for treatment while it is charging.

Warranty terms and conditions

Free Repair of Main Unit: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Setup and installation support

Please Note: While CanDent Group doesn't handle product installation, we are here to support you! Most of our devices are highly user-friendly and come with standard parts, though a few complex setups might need special connectors or technical expertise. We don't provide hands-on setup, but our team is always ready to answer your questions and share tips to make your installation as smooth as possible.

Request a loaner

Contact us with the product model, your clinic details and the reason for your request. Availability, eligibility, timing and any applicable charges will be confirmed individually. A request does not reserve or guarantee a loaner.

Request a loaner
Watch and learn

Product videos

E-Connect S Operation

Watch on YouTube ↗

Contra Angle Maintenance

Watch on YouTube ↗
Questions, answered

E-xtreme FAQ

Do I need to enter speed and torque manually for every file system?
For a supported built-in preset, no. Selecting a preset automatically loads its operating mode, speed and torque, so you do not need to enter each value separately. Confirm the settings for the exact file and follow its instructions before use.
Which file systems have preset options?
Preset options include NIC, ProTaper, WaveOne Gold, Reciproc Blue and other supported systems. The manual also shows ProTaper SX/S1, ProTaper S2, One Shape, One Flare and One Curve as preset examples.
Can preset programs replace or save memory settings?
E-xtreme has 10 modes, M0–M9. The manual says preset programs can replace M1–M9; M0 is the separate reciprocating mode.
Which movements does the motor support?
E-xtreme supports FWD and REV continuous rotation and REC reciprocation. Choose the movement and parameters recommended by the manufacturer of the specific file system.
What reciprocating angles are available?
M0 provides five fixed forward/reverse angle combinations: 30°/150°, 150°/30°, 180°/30°, 210°/30° and 250°/30°. The manual says these M0 angle values cannot be changed.
Does E-xtreme include a built-in apex locator?
No. E-xtreme is an endodontic motor without a built-in apex locator. Use a separate apex locator when electronic working-length measurement is required.
Can I use the motor while it is charging?
No. The manual says not to use the equipment for treatment during charging. Use the original power adapter.
Which files fit the contra-angle?
The manual specifies 2.35 mm ISO 1797:2017 Type 1 root canal files with lengths from 11 to 31 mm. Confirm compatibility and settings with the file manufacturer’s instructions.
Where can I find the instructions and accessories?
Use the E-xtreme manual and catalogue buttons near the product details. Contact CanDent Group if you need help choosing a compatible contra-angle or endodontic file system.
This product overview does not replace the current Eighteeth E-xtreme instructions for use. Always follow the file manufacturer’s recommended speed, torque and movement settings.
