Eighteeth · Cordless curing light

CuringPen Four LEDs.
Flexible curing control.

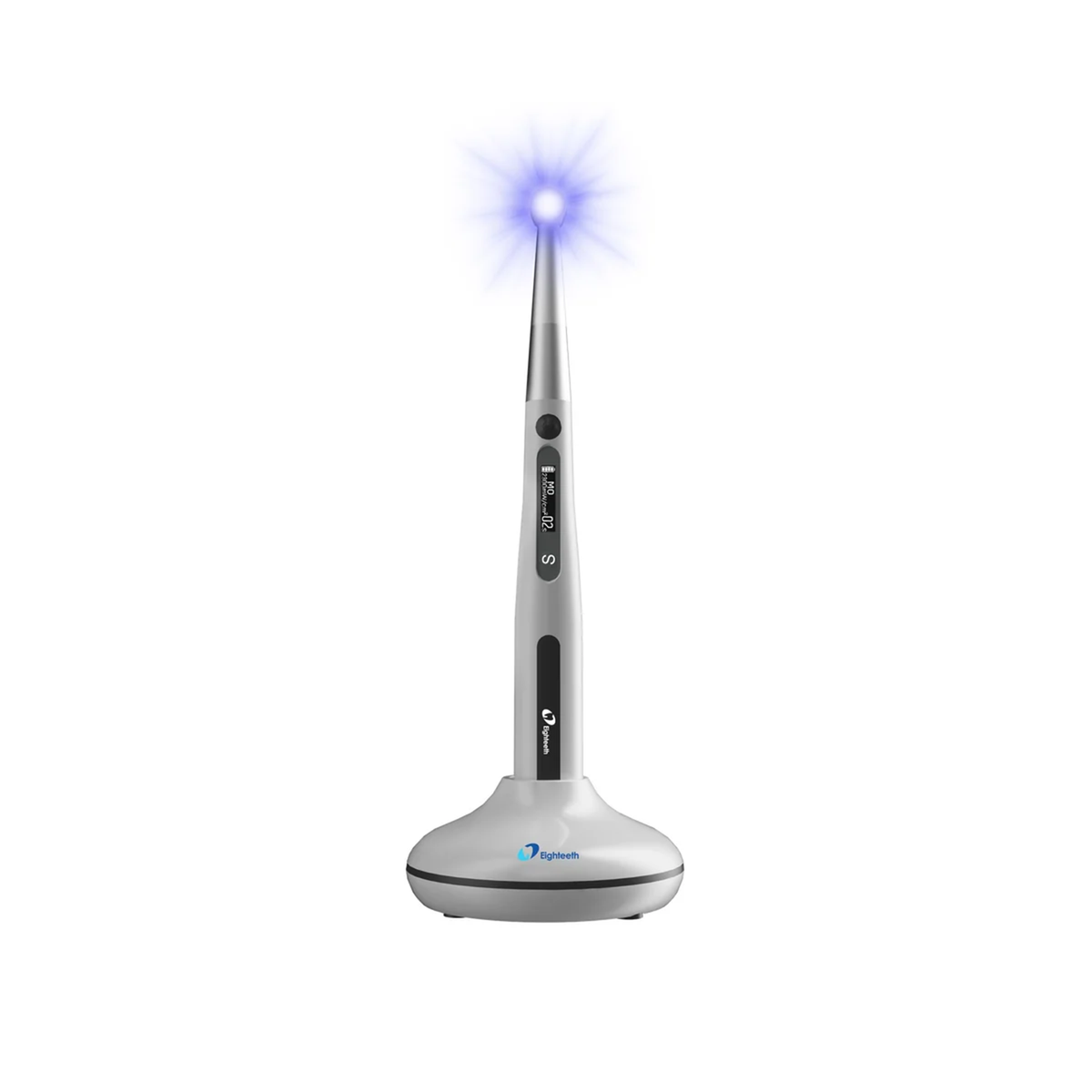

The Eighteeth CuringPen is a cordless 4-LED curing light for dental resins and composites. Three customisable curing memories, Ramp and Pulse modes, a 360° rotating head and a clear digital display give you flexible control over light output and exposure time. A separate Detect mode supports visual examination.

4-LED light source Up to 2300 mW/cm² 360° rotating head 6 memory programmes

Features & benefits

Explore the details

Click or tap to enlarge ↗

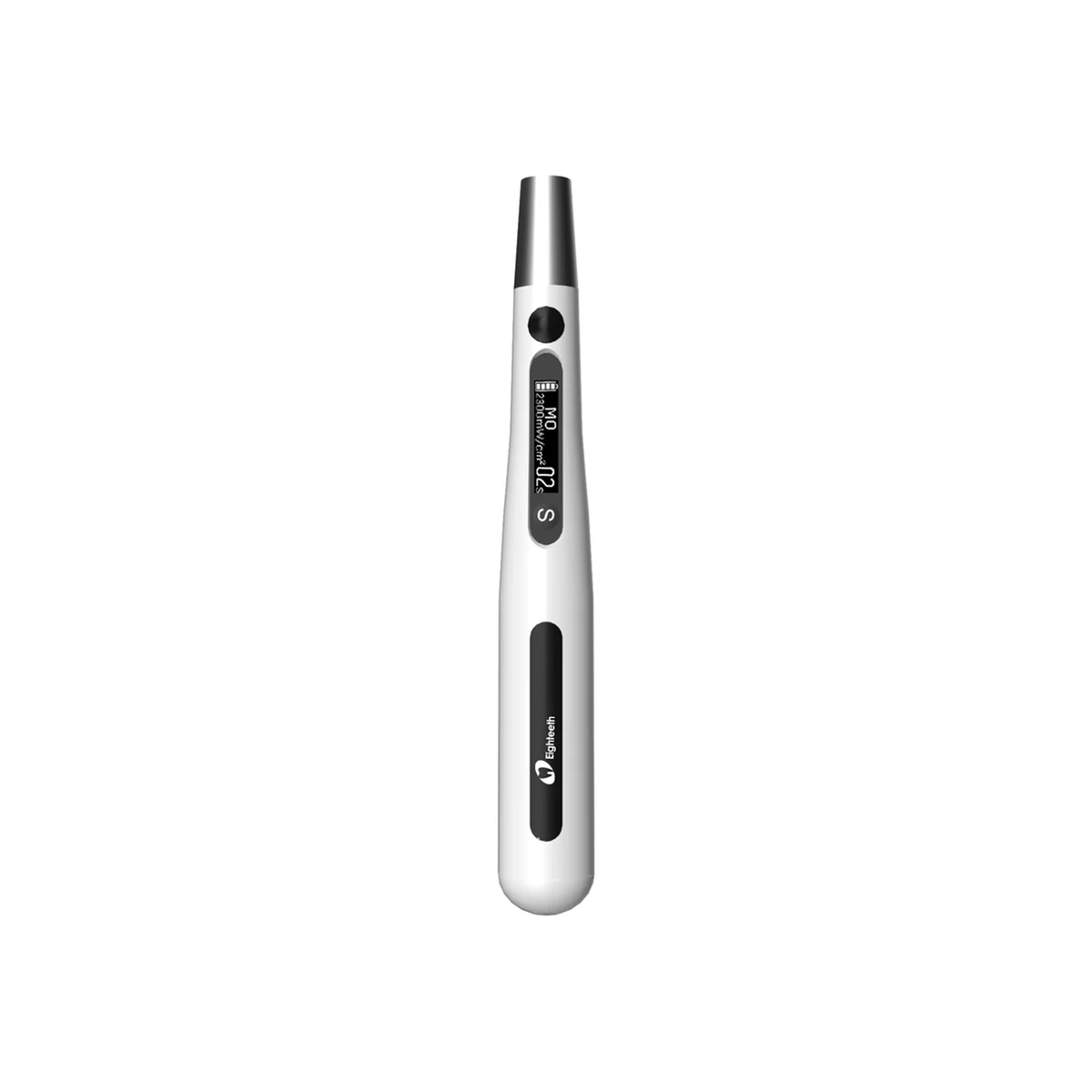

Cordless freedom. Clear settings.

A pen-style light for restorative workflows

Cordless handpiece: Work without a power cable attached to the handpiece during treatment.
At-a-glance display: View the selected memory, light intensity, curing time and battery level.
Personalised handling: Choose left- or right-hand display settings and adjust sound volume to your preference.

Click or tap to enlarge ↗

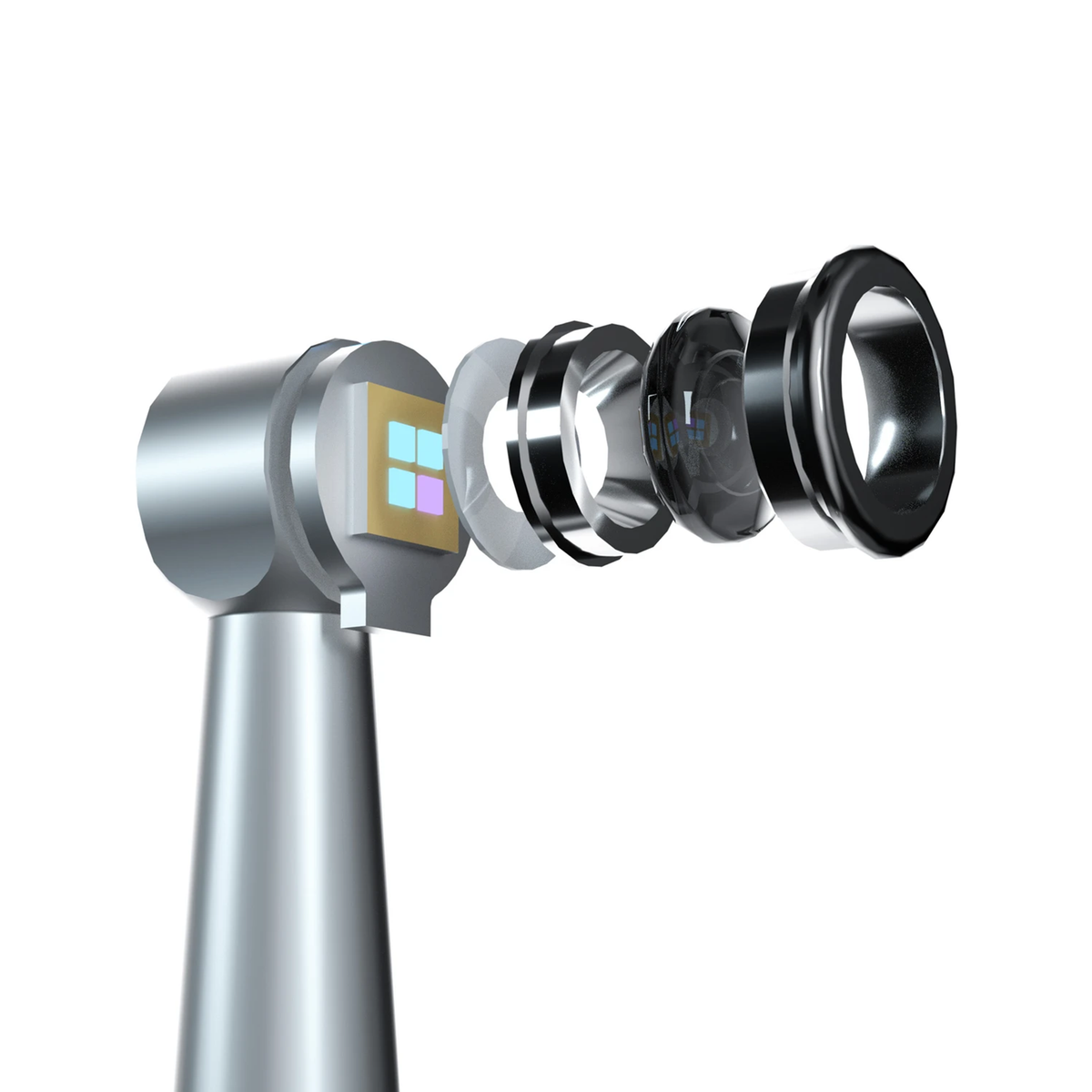

Four LEDs. Multiple output levels.

Blue and violet light in one head

4-LED configuration: Three blue LEDs and one violet LED are shown in the manufacturer’s product artwork.
Selectable curing intensity: Set M0, M1 and M2 to 1000, 1500 or 2300 mW/cm².
Broad spectral output: The supplied manual specifies a wavelength range of 380–515 nm. Select compatible materials and exposure settings according to their instructions.

Click or tap to enlarge ↗

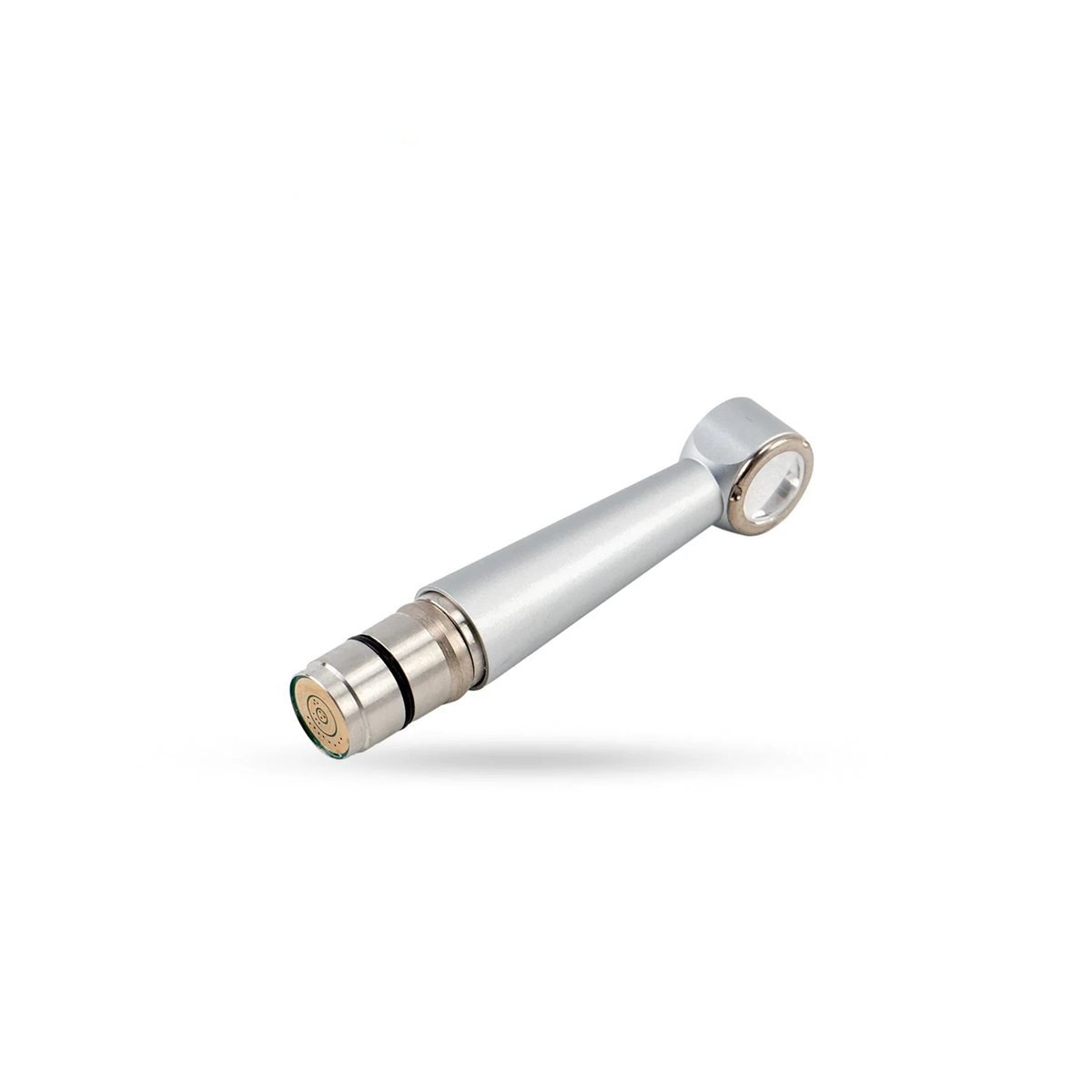

Choose the mode. Position the head.

Three custom memories, Ramp, Pulse and Detect

Customisable memories: Save preferred intensity and exposure settings in M0, M1 and M2.
Ramp and Pulse: Ramp increases to 1000 mW/cm² over the first 5 seconds; Pulse delivers intermittent output at 1000 mW/cm².
360° head rotation: Rotate the light-source head without removing it to help position the light while keeping the display visible.
Separate Detect mode: A 600 mW/cm² examination mode supports visual assessment of calculus, caries and cracks. It must not be used for curing.

Click or tap to enlarge ↗

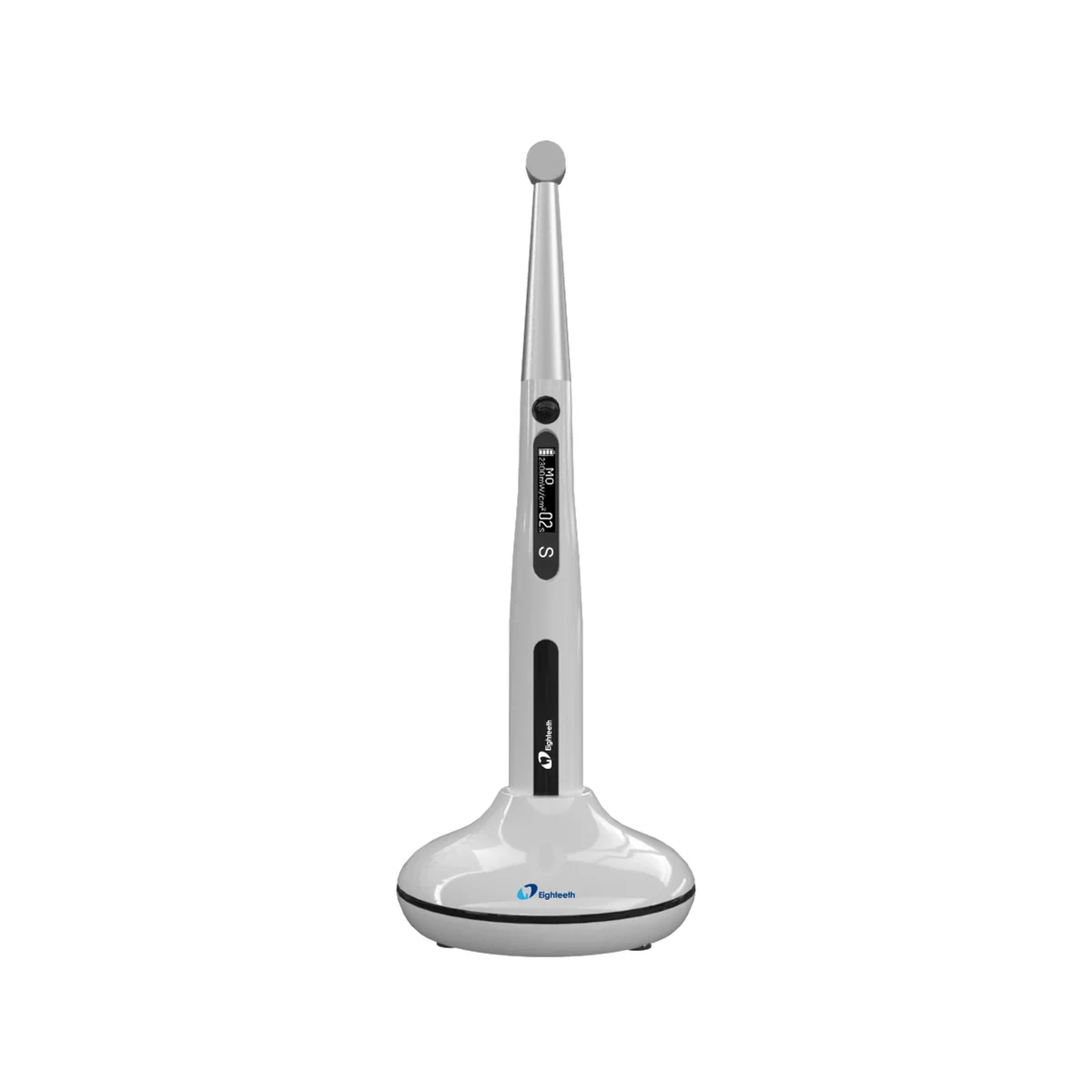

Recharge. Protect. Prepare.

A charging base and everyday essentials

Rechargeable battery: A 3.7 V / 1600 mAh lithium-ion battery powers the handpiece. A full charge takes approximately 4 hours, depending on the battery’s condition and remaining charge.

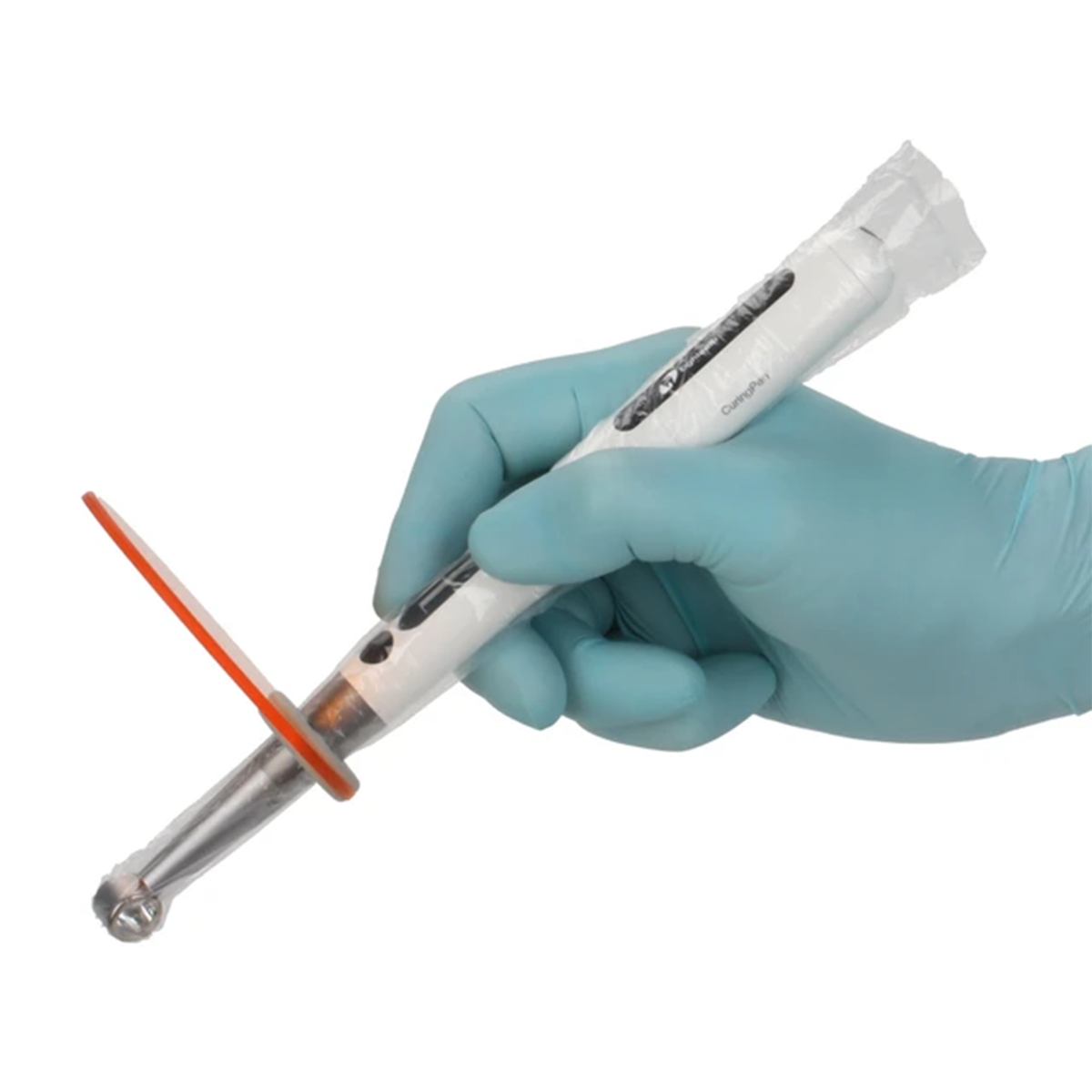

Included protective accessories: The kit contains a protective light shield and 100 disposable sleeves. Use a fresh sleeve for each patient.
Automatic power-off: Select an inactivity timer of 1, 5, 10 or 15 minutes.

Choose the exposure for the material: curing time and depth depend on the restorative material, increment thickness, shade, light positioning and selected output. Follow the material manufacturer’s curing instructions. Detect mode is for examination and cannot cure dental resins or composites.

Technical specifications

Curing Pen at a glance

Specification	Details
Light source	4 LEDs: 3 blue + 1 violet
Wavelength	380–515 nm (wide-spectrum)
Standard curing output	1000 / 1500 / 2300 mW/cm²
Programmes	M0, M1, M2, Ramp, Pulse and Detect
Curing time at 2300 mW/cm²	1 / 2 / 3 seconds
Curing time at 1000 or 1500 mW/cm²	5 / 10 / 15 / 20 seconds
Detect mode	600 mW/cm²; examination only
Light-source head	360° rotation
Battery	Lithium-ion, 3.7 V / 1600 mAh (±10%)
Full charging time	Approximately 4 hours
Adapter	AC 100–240 V, 50/60 Hz; DC 5 V / 1 A output

Your Curing Pen kit

What’s included

Component	Quantity
Curing Pen handpiece	1
Light-source head	1
Charging base	1
Protective light shield	1
Disposable sleeves	100
Power adapter with North American plug	1 set

Supplied with a North American plug for standard Canadian and U.S. outlets. The adapter accepts AC 100–240 V, 50/60 Hz.

Warranty terms and conditions

Free Repair of Main Unit: 1 Year / Accessory Parts: 6 Months / Consumables: No Warranty

Request a loaner

Contact us with the product model, your clinic details and the reason for your request. Availability, eligibility, timing and any applicable charges will be confirmed individually. A request does not reserve or guarantee a loaner.

Request a loaner

Questions, answered

Curing Pen FAQ

Can I use a 1–3 second exposure for every composite?

No. The 1, 2 and 3 second settings are available at 2300 mW/cm², but their suitability depends on the restorative material and clinical conditions. Follow the material manufacturer’s specified intensity, exposure time and maximum increment thickness.

What is the difference between M0, M1 and M2?

These are three customisable memory programmes. Each can store a selected output of 1000, 1500 or 2300 mW/cm² with an available exposure time, allowing you to recall different settings.

How do Ramp and Pulse differ?

Ramp gradually increases to 1000 mW/cm² during the first 5 seconds and then continues at that output. Pulse uses intermittent output at 1000 mW/cm². Their light intensity is preset.

Can Detect mode cure a restoration?

No. Detect operates at 600 mW/cm² and is intended for examination of calculus, caries, cracks and similar findings. The manual warns that using it to cure resins or composites risks incomplete curing.

Does the light-source head rotate?

Yes. The head rotates through 360° without being removed. The settings menu also provides left- and right-hand display options.

How long does charging take, and can I use it on the base?

A full charge takes approximately 4 hours, depending on remaining charge and battery condition. Other functions stop during charging. Use the original adapter and seat the handpiece correctly in its charging base.

How should I clean it between patients?

Discard the disposable sleeve after each use. Clean and disinfect the device components using the procedure specified in Section 8 of the manual. Do not substitute an autoclave cycle for the manufacturer’s cleaning and disinfection procedure.

What protective measures are required?

Use the protective light shield and a disposable sleeve during treatment, as required by the manual. Avoid direct light exposure to the eyes and skin, and follow the manual’s precautions for heat and repeated high-output use.

Equipment guide

Compare related equipment

Compare the specifications available for each model. Missing specifications are shown as an em dash.

Add a device to compare

Equipment specifications side-by-side comparison
Specification	Eighteeth Curing Light CuringPen 4 LED	Select a model
Light source	4 LEDs: 3 blue + 1 violet	—
Wavelength	380–515 nm	—
Maximum intensity	Up to 2300 mW/cm²	—
Output levels	1000 / 1500 / 2300 mW/cm²	—
Modes	M0, M1, M2, Ramp, Pulse, Detect (Detect is for examination only)	—
Light head	360° rotation	—
Battery	Lithium-ion, 3.7 V / 1600 mAh (±10%)	—
Full charging time	Approximately 4 hours	—
Weight	120 g	—
Light head size	⌀12 mm	—
Warranty	Main unit repair: 1 year; accessory parts: 6 months; consumables: no warranty.	—
