NIC® KD Blue .04 taper rotary file assortment

NIC® KD Blue Rotary Files

.04 / 15 / 21mm
$46.50 CAD
$46.50 CAD
Skip to product information
NIC® KD Blue .04 taper rotary file assortment

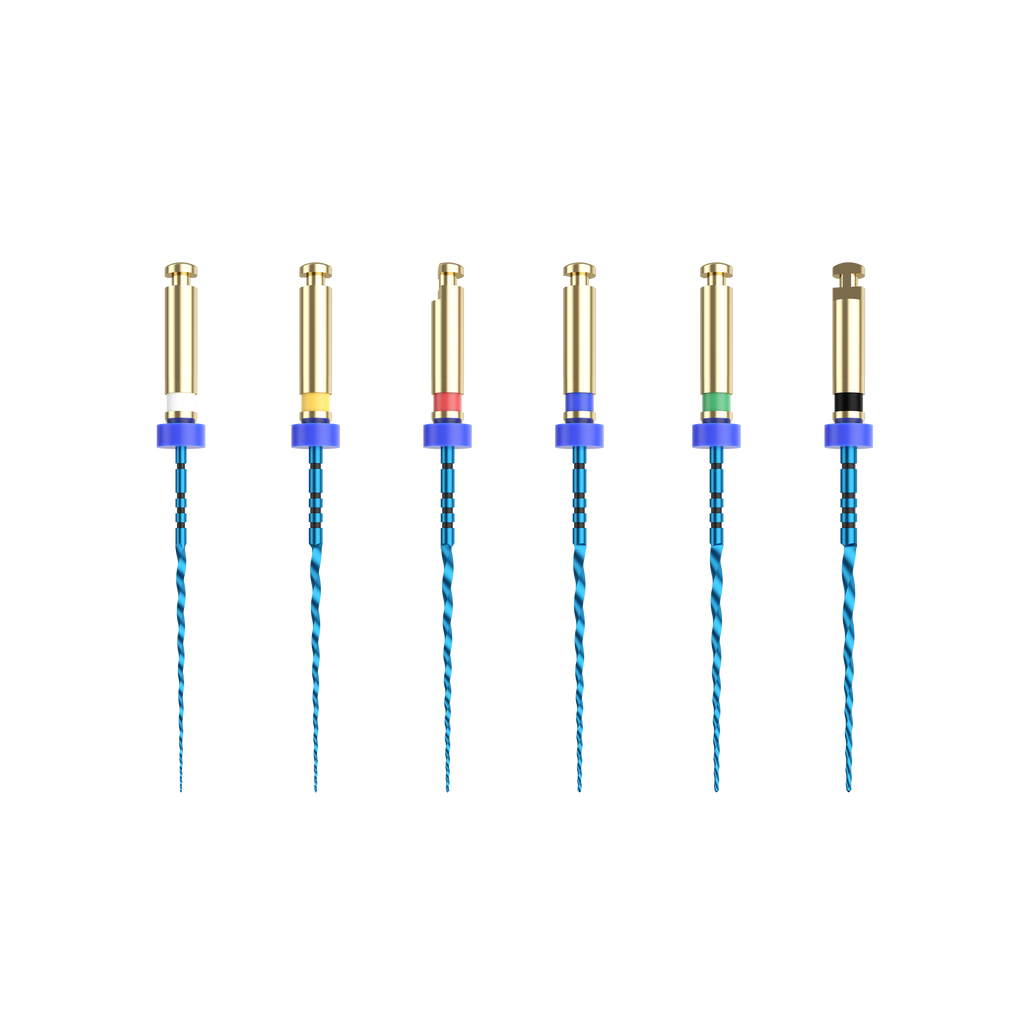

  • NIC® KD Blue .04 taper rotary file assortment

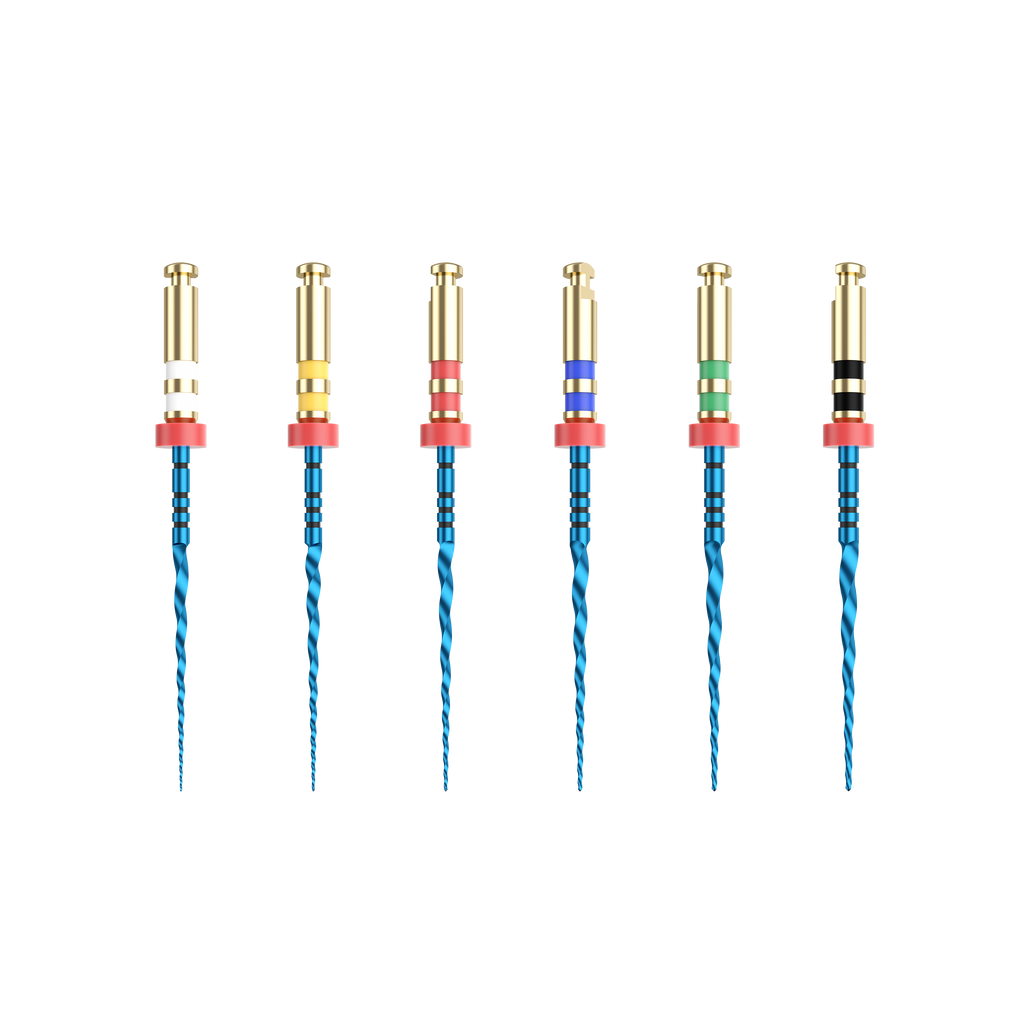

  • NIC® KD Blue .06 taper rotary file assortment
  • NIC® KD Blue 15/.04 rotary file
  • NIC® KD Blue 20/.04 rotary file
  • NIC® KD Blue 25/.04 rotary file
  • NIC® KD Blue 30/.04 rotary file
  • NIC® KD Blue 35/.04 rotary file
  • NIC® KD Blue 40/.04 rotary file
  • NIC® KD Blue 15/.06 rotary file
  • NIC® KD Blue 20/.06 rotary file
  • NIC® KD Blue 30/.06 rotary file
  • NIC® KD Blue 25/.06 rotary file
  • NIC® KD Blue 35/.06 rotary file
  • NIC® KD Blue 40/.06 rotary file
MaxTech™ 6.0 Heat Treatment
360° Rotary Motion
Crown Down File System
Sterilizable 134° C
Detailed product information

Specifications, clinical guidance, documents and safety information are available below.

View product details
NIC® Dental · Rotary Files
NIC® KD Blue Rotary Files

NIC® KD Blue Rotary Files

$46.50 CAD
$46.50 CAD
Taper
Size
Length
SKU: BKD0211504
In stock
Free Shipping For All Products

We will work quickly to ship your order as soon as possible. All orders ship free with no minimum order quantity. Express shipping is available for an additional fee.
Return Policy

Return eligible items within 30 days of delivery. We offer free returns, making the process simple and hassle-free.

To be eligible for a return, your item must be unused, unopened, in the same condition as received, and in its original packaging. You'll also need the receipt or proof of purchase.
30-Day Try-It Guarantee

Trying one of our endodontic file systems for the first time? We want you to purchase with confidence. If the system is not well suited to your clinical technique, contact us within 30 days of purchase. We will help you select a more suitable option or provide an exchange or refund in accordance with our return policy.

Applies to first-time purchases of eligible products. Maximum one opened pack per product system. Proof of purchase is required.
Product details

NIC® KD Blue Rotary Files at a glance

Core specifications organized for quick review before selecting a configuration.

Manufacturer NIC® Dental
Motion Continuous clockwise rotation
Heat treatment MaxTech 6.0 blue heat-treated NiTi
Cross-section Convex triangular
Sizes 15/.04 / 20/.04 / 25/.04 / 30/.04 / 35/.04 / 40/.04 / 15/.06 / 20/.06 / 25/.06 / 30/.06 / 35/.06 / 40/.06
Lengths 21 mm / 25 mm / 31 mm
Packaging 6 instruments / pack
Sterility Non-sterile · sterilize before first use
Product overview

About this product

Additional information about this product and its intended clinical application.

NIC® KD Blue Rotary Files are blue heat-treated NiTi endodontic instruments designed for continuous clockwise Crown-Down root canal shaping. Made with MaxTech™ 6.0 blue heat-treated NiTi, they feature a convex triangular cross-section and constant .04 and .06 tapers. Available in ISO sizes 15–40 and lengths of 21 mm, 25 mm, and 31 mm. Supplied non-sterile in packs of 6 for single clinical use.

File identification

Recognize the file family by colour and size

Identify each file by its size, taper, colour and available length.

NIC® KD Blue Rotary Files KD Blue 15/.04 15/.04 White file

KD Blue 15/.04

15/.04
White

Initial shaping in narrow canals

21 mm / 25 mm / 31 mm 500 RPM 0.75 N·cm
NIC® KD Blue Rotary Files KD Blue 20/.04 20/.04 Yellow file

KD Blue 20/.04

20/.04
Yellow

Progressive shaping after a smaller pathway is established

21 mm / 25 mm / 31 mm 500 RPM 0.75 N·cm

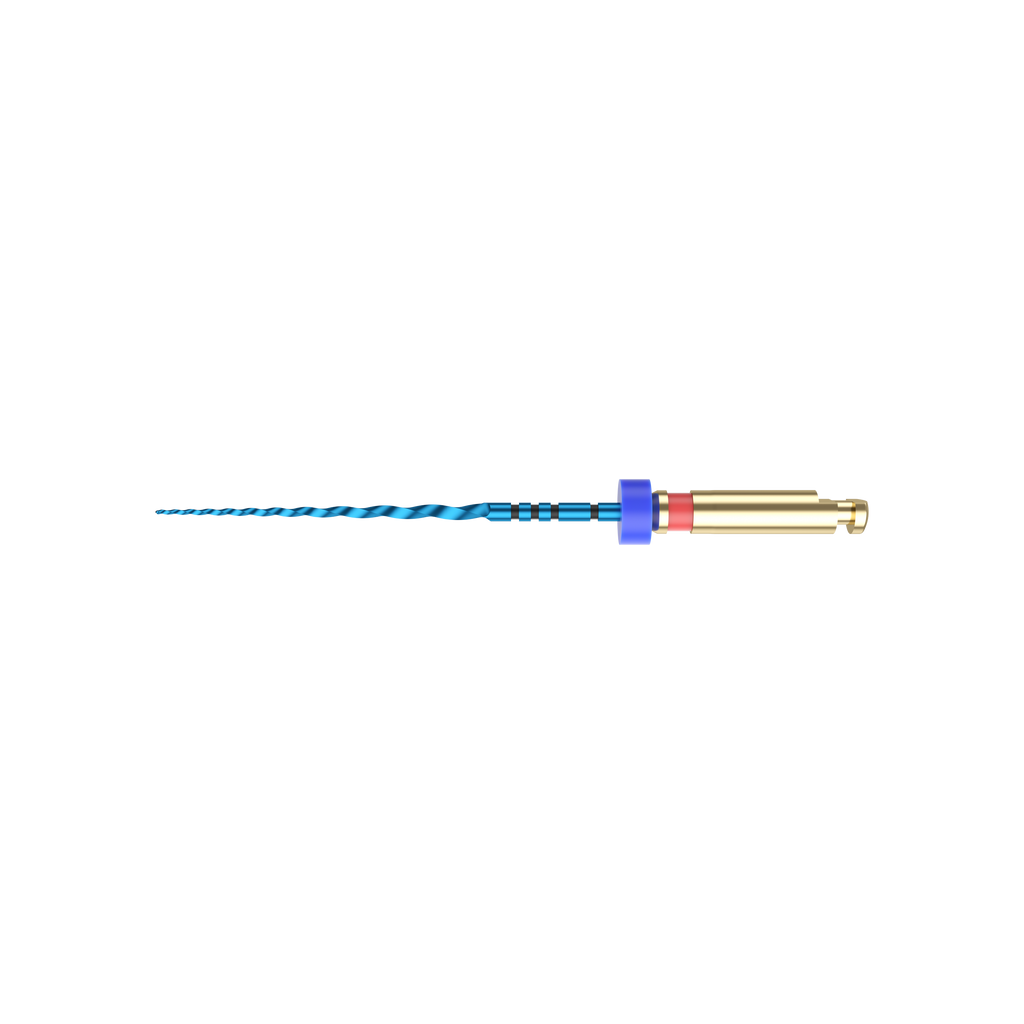

NIC® KD Blue Rotary Files KD Blue 25/.04 25/.04 Red file

KD Blue 25/.04

25/.04
Red

Progressive apical shaping

21 mm / 25 mm / 31 mm 500 RPM 1.0 N·cm
NIC® KD Blue Rotary Files KD Blue 30/.04 30/.04 Blue file

KD Blue 30/.04

30/.04
Blue

Crown-Down starting file for smaller canals

21 mm / 25 mm / 31 mm 500 RPM 1.0 N·cm
NIC® KD Blue Rotary Files KD Blue 35/.04 35/.04 Green file

KD Blue 35/.04

35/.04
Green

Further enlargement where anatomy supports

21 mm / 25 mm / 31 mm 500 RPM 1.3 N·cm

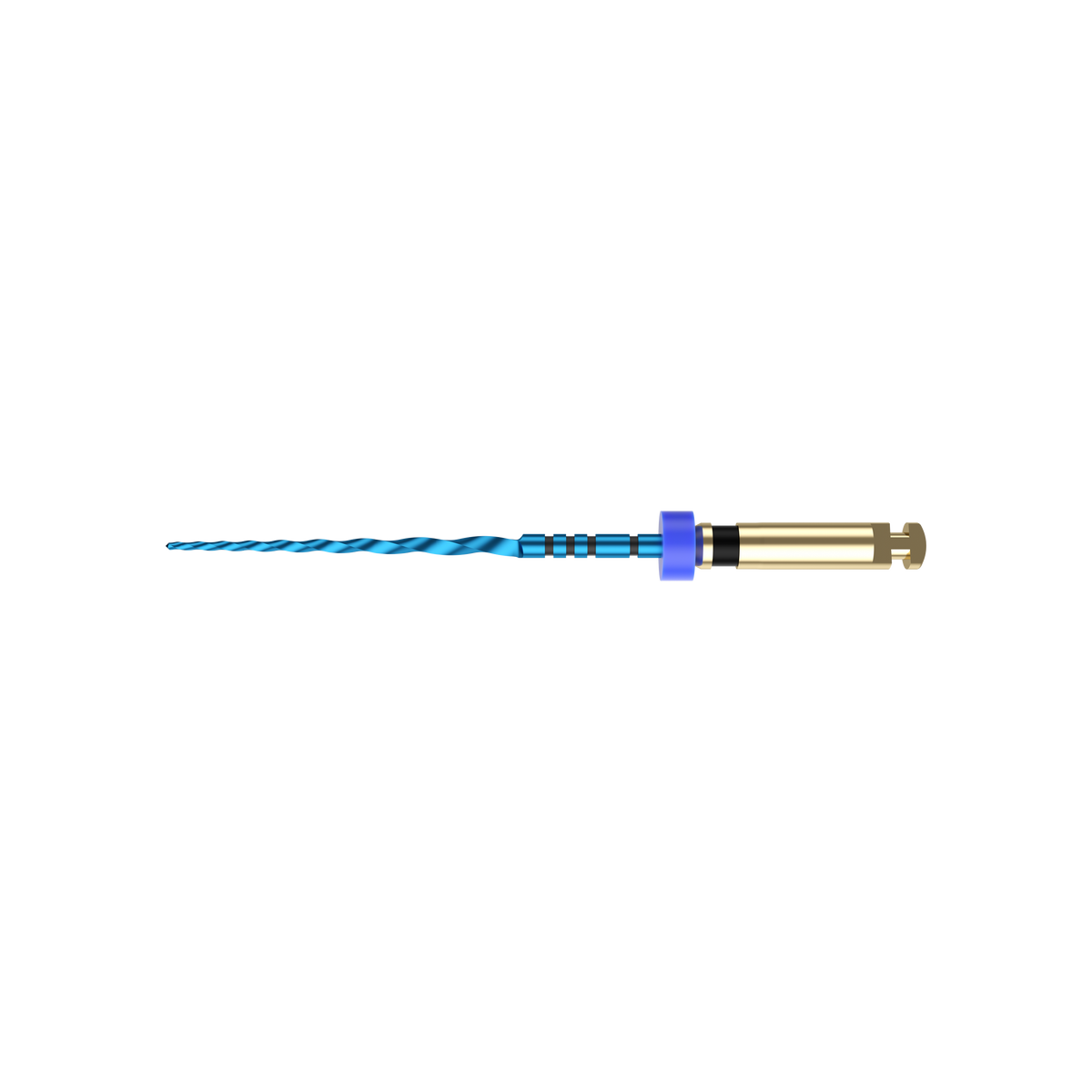

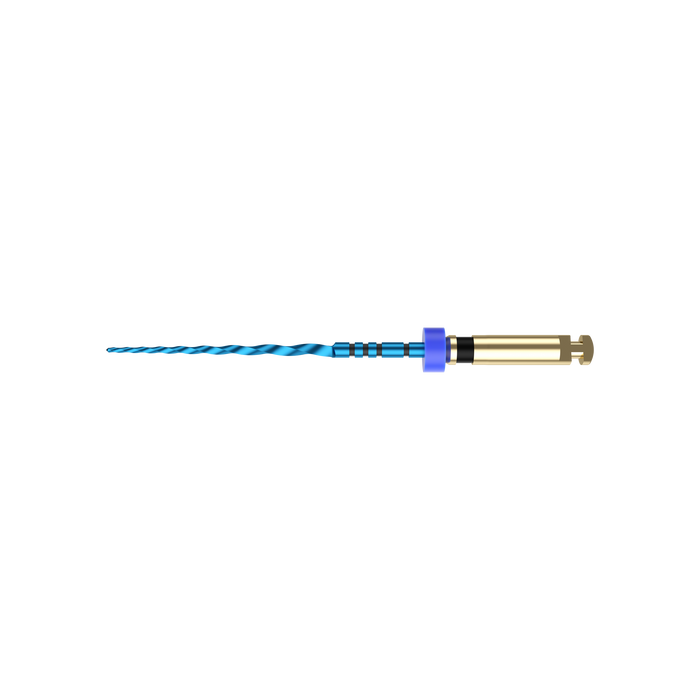

NIC® KD Blue Rotary Files KD Blue 40/.04 40/.04 Black file

KD Blue 40/.04

40/.04
Black

Crown-Down starting file for larger canals

21 mm / 25 mm / 31 mm 500 RPM 1.3 N·cm
NIC® KD Blue Rotary Files KD Blue 15/.06 15/.06 White file

KD Blue 15/.06

15/.06
White

Initial .06 shaping where anatomy supports greater taper

21 mm / 25 mm / 31 mm 500 RPM 2.0 N·cm
NIC® KD Blue Rotary Files KD Blue 20/.06 20/.06 Yellow file

KD Blue 20/.06

20/.06
Yellow

Progressive .06 shaping

21 mm / 25 mm / 31 mm 500 RPM 2.0 N·cm

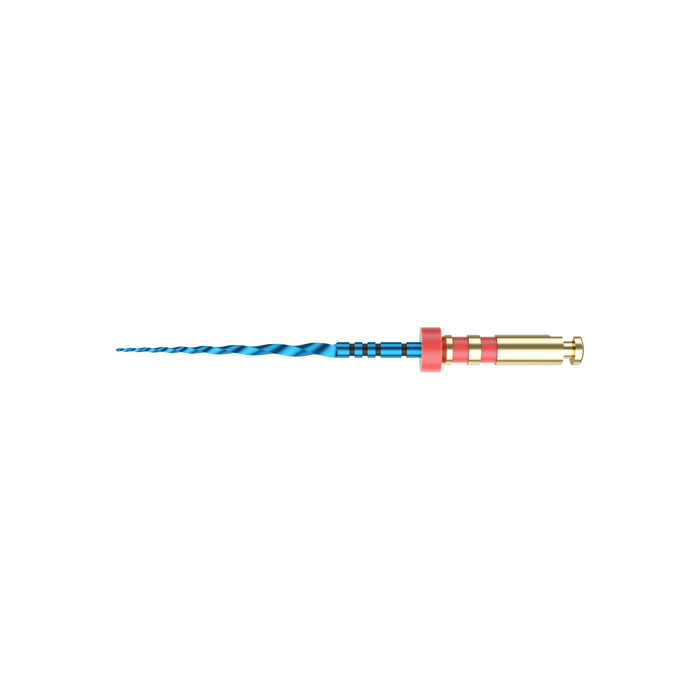

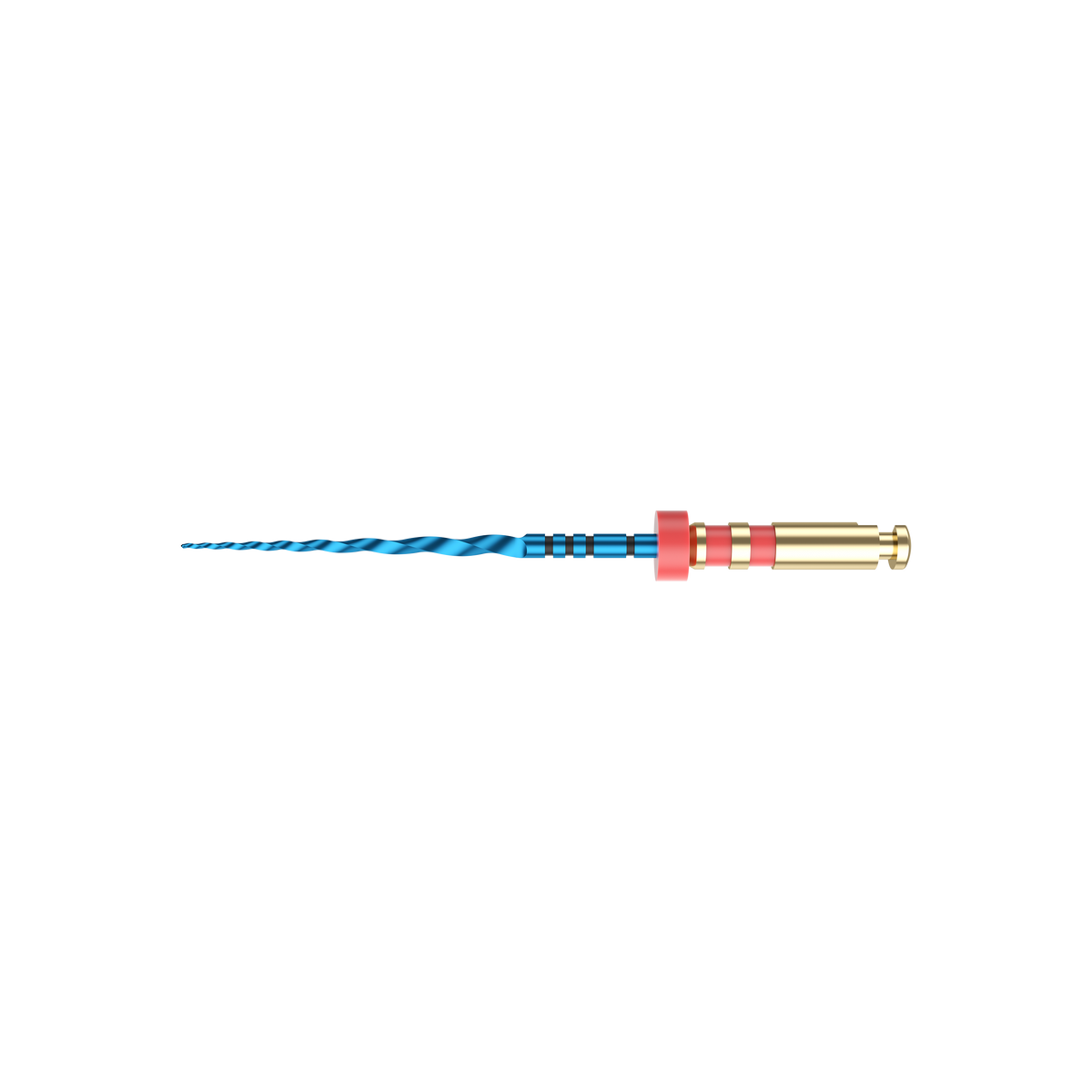

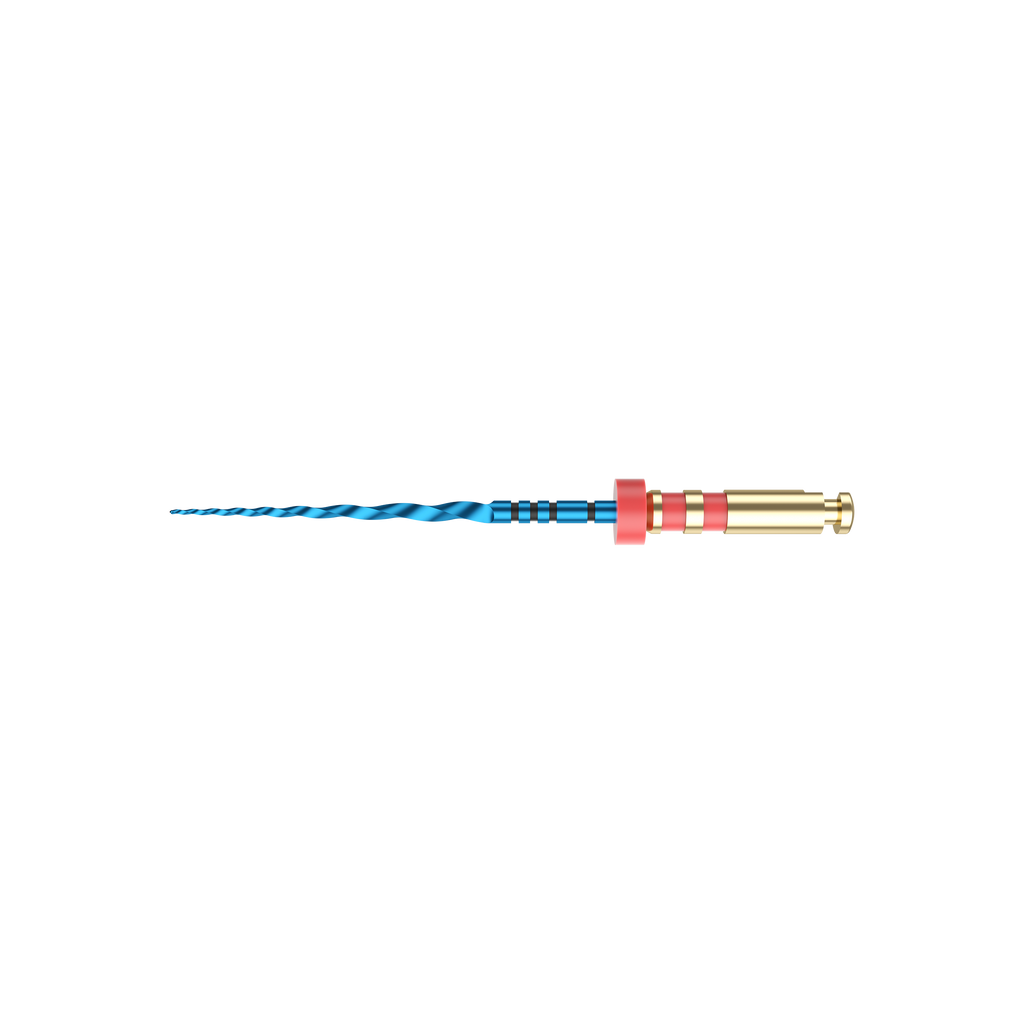

NIC® KD Blue Rotary Files KD Blue 25/.06 25/.06 Red file

KD Blue 25/.06

25/.06
Red

Progressive apical enlargement

21 mm / 25 mm / 31 mm 500 RPM 3.0 N·cm
NIC® KD Blue Rotary Files KD Blue 30/.06 30/.06 Blue file

KD Blue 30/.06

30/.06
Blue

Further shaping in suitable anatomy

21 mm / 25 mm / 31 mm 500 RPM 3.0 N·cm

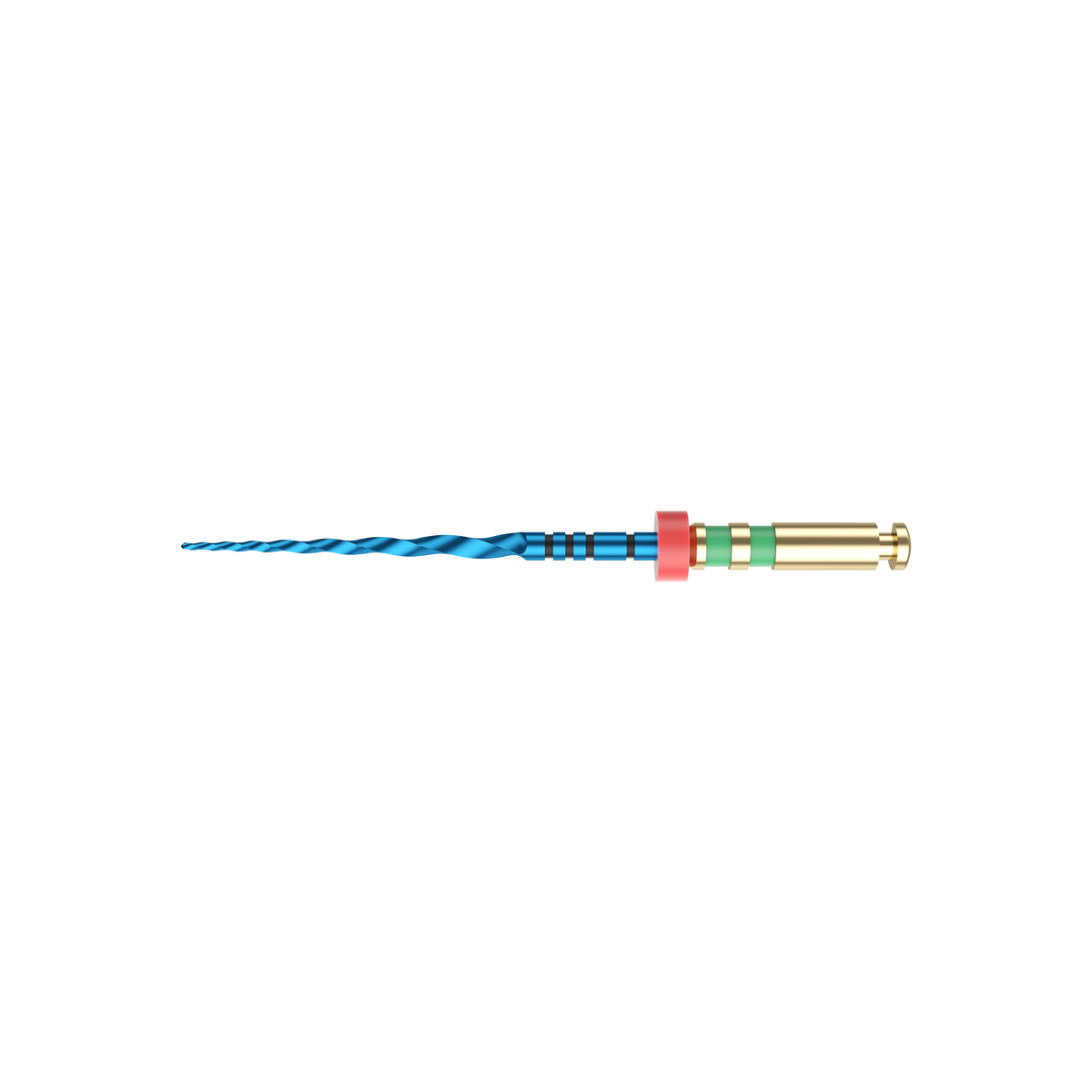

NIC® KD Blue Rotary Files KD Blue 35/.06 35/.06 Green file

KD Blue 35/.06

35/.06
Green

Larger apical preparation where indicated

21 mm / 25 mm / 31 mm 500 RPM 4.0 N·cm

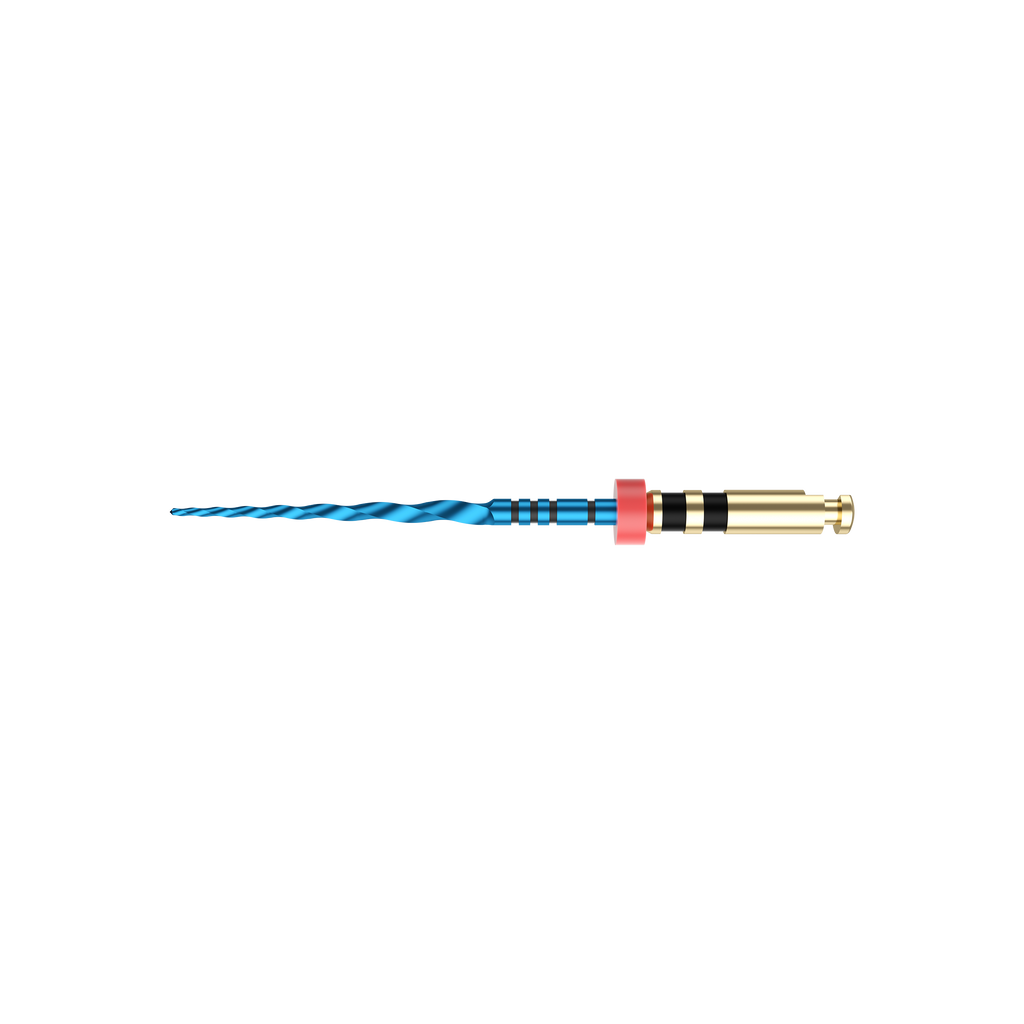

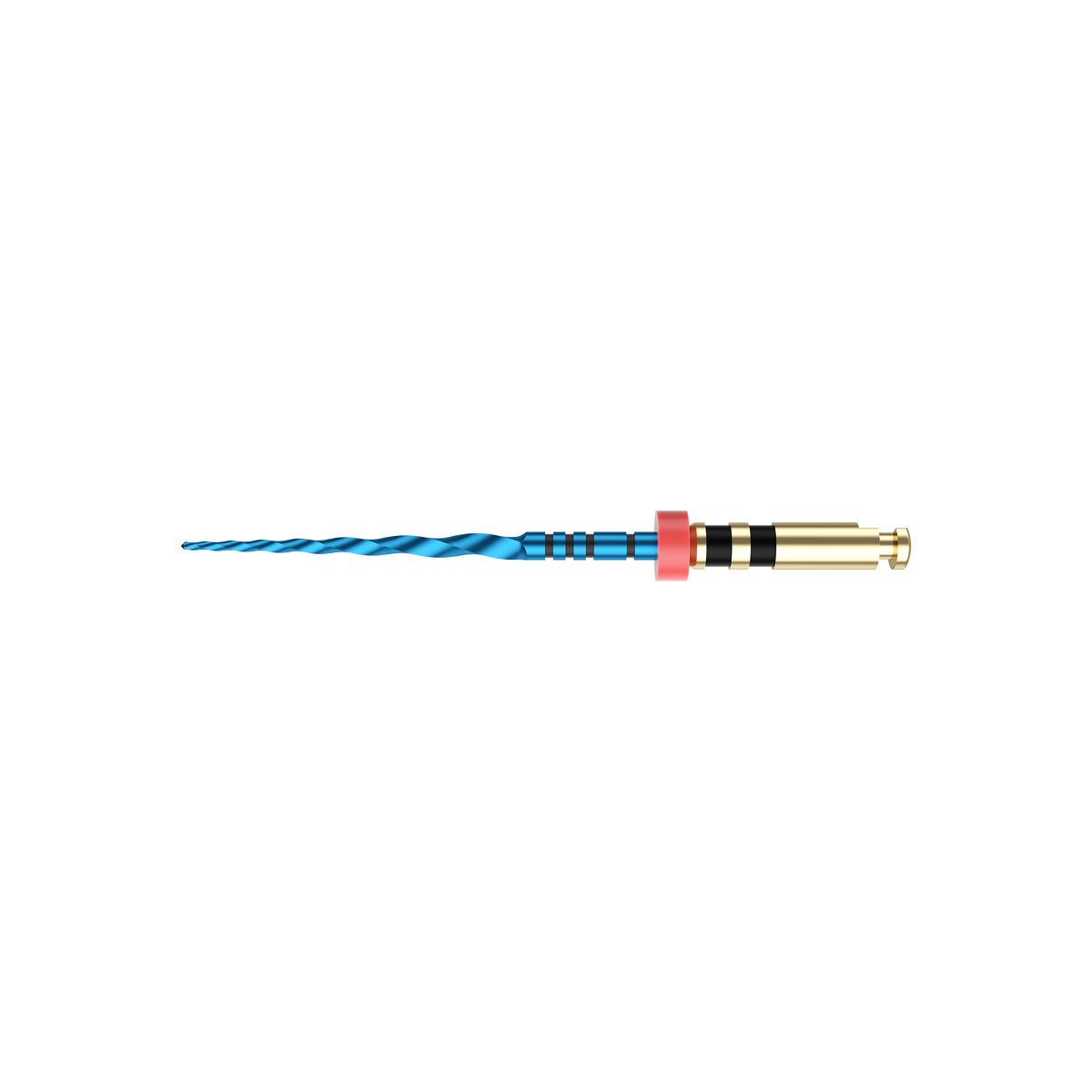

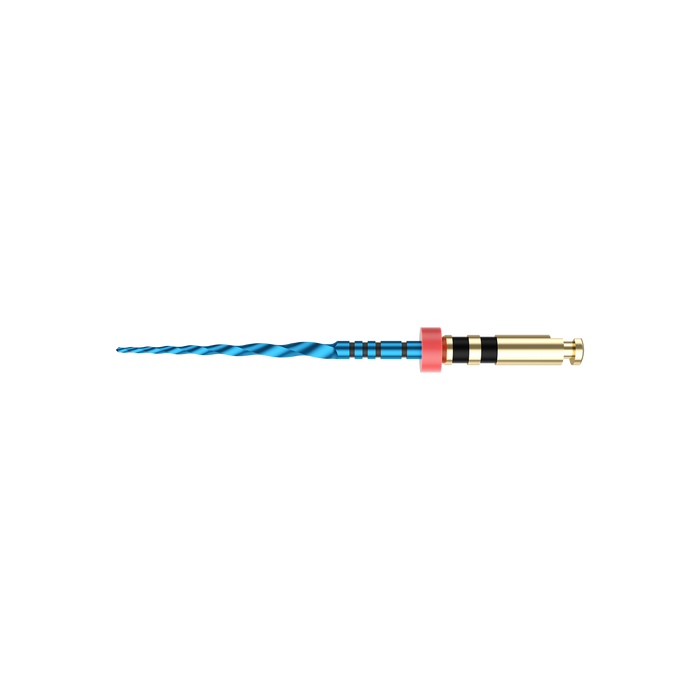

NIC® KD Blue Rotary Files KD Blue 40/.06 40/.06 Black file

KD Blue 40/.06

40/.06
Black

Largest KD Blue .06 preparation size

21 mm / 25 mm / 31 mm 500 RPM 4.0 N·cm
Familiar workflow

Coming from Vortex Blue®?

NIC® KD Blue Rotary Files is organized around a familiar continuous clockwise rotation workflow for clinicians who already use Vortex Blue®. Product-specific specifications and manufacturer guidance remain the reference for clinical use.

  • File family: KD Blue 15/.04 · KD Blue 20/.04 · KD Blue 25/.04 · KD Blue 30/.04 · KD Blue 35/.04 · KD Blue 40/.04 · KD Blue 15/.06 · KD Blue 20/.06 · KD Blue 25/.06 · KD Blue 30/.06 · KD Blue 35/.06 · KD Blue 40/.06
  • Sizes: 15/.04 / 20/.04 / 25/.04 / 30/.04 / 35/.04 / 40/.04 / 15/.06 / 20/.06 / 25/.06 / 30/.06 / 35/.06 / 40/.06
  • Motion: Continuous clockwise rotation
  • Motor program: Continuous rotary, torque-controlled
Motion Continuous clockwise rotation
File family KD Blue 15/.04 · KD Blue 20/.04 · KD Blue 25/.04 · KD Blue 30/.04 · KD Blue 35/.04 · KD Blue 40/.04 · KD Blue 15/.06 · KD Blue 20/.06 · KD Blue 25/.06 · KD Blue 30/.06 · KD Blue 35/.06 · KD Blue 40/.06
Motor setup Continuous rotary, torque-controlled
Heat treatment MaxTech 6.0 blue heat-treated NiTi

Vortex Blue® is referenced to help identify a familiar clinical workflow. Product-specific use should follow the current manufacturer instructions for use. Motor terminology can vary between manufacturers.

Clinical specifications

Design & clinical use

Key technical and clinical characteristics of NIC® KD Blue Rotary Files.

Material / treatment MaxTech 6.0 blue heat-treated NiTi
Motion Continuous clockwise rotation
Cross-section Convex triangular
Taper design Constant taper (.04 and .06)
Technique Crown-Down rotary shaping
Motor & motion

Continuous clockwise rotation motor setup

Recommended operating configuration for this file system.

Motion Continuous clockwise rotation
Motor program Continuous rotary, torque-controlled
Speed 500 RPM
Torque File-specific: .04 = 0.75–1.3 N·cm; .06 = 2.0–4.0 N·cm
Use the motor program and settings specified for this product. If your motor uses different terminology, confirm the selected program and follow the current manufacturer instructions for use.
Clinical workflow

Step-by-step clinical workflow

Follow the clinical sequence below together with the current manufacturer instructions for use.

0 1 Establish the glide path #10 → #15 hand file · working length · patency

Establish straight-line access and negotiate the canal with stainless-steel hand files. Confirm patency with a size #10 K-file and create a smooth, reproducible glide path to at least a size #15 K-file at working length. Irrigate and recapitulate frequently before introducing KD Blue rotary files.

0 2 Small canals: begin with 30/.04 Passive Crown-Down progression · step down on resistance

For smaller canals, begin Crown-Down shaping with KD Blue 30/.04. Advance the file passively until resistance is encountered or working length is reached. If resistance occurs before working length, step down sequentially to a smaller .04 file. Irrigate, clean the flutes and recapitulate with a small hand file between rotary instruments.

0 3 Larger canals: begin with 40/.04 Coronal enlargement · Crown-Down shaping

For larger canals, begin with KD Blue 40/.04 and advance passively until resistance is encountered or working length is reached. When resistance occurs before working length, continue with smaller .04 instruments until a safe pathway is established. Irrigate and recapitulate between instruments.

0 4 Select the final taper and apical size .04 or .06 · ISO 15–40 · anatomy-led

Select the final KD Blue tip size and taper according to canal anatomy, curvature and the intended preparation. Use .04 taper when flexibility and more conservative enlargement are priorities. Use .06 selectively where anatomy supports greater taper. Continue enlargement only as clinically indicated, with irrigation and recapitulation between instruments.

0 5 Verify the final preparation Working length · final size and taper · irrigation

Verify working length and the final preparation size and taper. Complete the final irrigation and disinfection protocol, then dry the canal and proceed with the clinician's preferred obturation technique using components appropriate for the final preparation.

Documents & resources

Product information in one place

Product documents and technical resources for this file system.

IFU

Instructions for Use

Manufacturer instructions and product-specific clinical-use information.

View IFU →
Sterility & safety

Important information for this product version

Review the sterility, handling and safety information for this exact product version.

Sterility Non-sterile · sterilize before first use
Use Single Use
Clinical handling & safety Review before clinical use
Before first clinical use

NIC® KD Blue files are supplied non-sterile and must be sterilized before first clinical use. Steam-autoclave the instruments at 134°C for 18 minutes using a validated steam sterilization process. Allow the instruments to dry completely before clinical use. KD Blue files are intended for single clinical use only. After clinical use, discard the instrument and do not clean, disinfect, sterilize, re-sterilize or reuse it.

  • For professional dental use only.
  • Use appropriate personal protective equipment and rubber dam isolation.
  • Do not use in patients with a known allergy or sensitivity to nickel-titanium or other device components.
  • Establish a smooth, reproducible glide path before introducing KD Blue rotary files.
  • Use NIC® KD Blue in continuous clockwise rotation only with a compatible torque-controlled endodontic motor. Do not use reciprocating motion.
  • Use the recommended 500 RPM speed and the file-specific torque setting for the selected size and taper.
  • Advance the file passively with minimal apical pressure. Do not force the instrument toward working length.
  • If resistance is encountered, withdraw the file, clean the flutes, irrigate, recapitulate and select a smaller instrument when appropriate.
  • Exercise additional caution in canals with abrupt curvature, canal division, calcification or other complex anatomy where safe passive progression cannot be achieved.
  • Clean and inspect the flutes regularly during use for deformation, unwinding, wear, corrosion or other signs of damage.
  • Irrigate and recapitulate frequently between rotary instruments.
  • Because of the MaxTech 6.0 heat treatment, a file may show slight pre-curvature. Do not forcefully straighten the instrument before use.
  • Single clinical use only. Do not clean, disinfect, sterilize, re-sterilize or reuse the file after clinical use.
  • Dispose of used instruments in an appropriate biohazard sharps container.
  • Store in the original packaging in a clean, dry environment away from direct sunlight, excessive heat and humidity. Do not use after the stated expiry date.
Frequently asked questions

Common questions

Quick answers about product selection, configuration and clinical use.

What motion is used with NIC® KD Blue?

NIC® KD Blue is used in continuous clockwise rotation with a compatible torque-controlled endodontic motor. Do not use KD Blue in reciprocating motion.

What speed is recommended for KD Blue?

Use KD Blue at 500 RPM across the .04 and .06 file families.

What torque settings are used for KD Blue?

Torque is file-specific. For .04 taper, use 0.75 N·cm for sizes 15 and 20, 1.0 N·cm for sizes 25 and 30, and 1.3 N·cm for sizes 35 and 40. For .06 taper, use 2.0 N·cm for sizes 15 and 20, 3.0 N·cm for sizes 25 and 30, and 4.0 N·cm for sizes 35 and 40.

Which KD Blue file is used first in smaller canals?

For smaller canals, begin Crown-Down shaping with 30/.04. Advance the file passively. If resistance is encountered before working length, step down sequentially to a smaller .04 file rather than forcing the instrument apically.

Which KD Blue file is used first in larger canals?

For larger canals, begin with 40/.04 when canal anatomy supports it. Advance passively and step down to smaller .04 files if resistance is encountered before working length.

When should .04 versus .06 taper be selected?

Use .04 taper when flexibility and more conservative enlargement are priorities. Use .06 selectively where canal anatomy supports greater taper. The final taper should be selected according to anatomy, curvature and the intended preparation.

Which sizes and lengths are available for KD Blue?

KD Blue is available in 15/.04, 20/.04, 25/.04, 30/.04, 35/.04 and 40/.04, as well as 15/.06, 20/.06, 25/.06, 30/.06, 35/.06 and 40/.06. Available lengths are 21 mm, 25 mm and 31 mm.

Is NIC® KD Blue supplied sterile?

No. NIC® KD Blue is supplied non-sterile and must be sterilized before first clinical use according to the current manufacturer instructions for use. The product is intended for single clinical use.

What familiar workflow is KD Blue organized around?

KD Blue is organized around a familiar Vortex Blue® continuous-rotation workflow for clinicians who already use that type of rotary system. Always follow the product-specific KD Blue specifications and the current NIC® manufacturer instructions.

Where is NIC® KD Blue manufactured?

NIC® KD Blue is manufactured in Shenzhen, Guangdong, China.

CanDent Group support

Need help choosing the right configuration?

CanDent Group can help you review the available configurations, specifications and product information for NIC® KD Blue Rotary Files before you place your order.

Contact CanDent Group +1 (647) 947-4020

Product information: This page presents product specifications and workflow information for NIC® KD Blue Rotary Files from NIC® Dental . Always follow the current manufacturer instructions for use supplied with the exact product.

Trademark reference: Vortex Blue® and other third-party product or program names are trademarks of their respective owners. They are referenced only to identify a familiar workflow or manufacturer-documented compatibility context. These references do not imply affiliation or endorsement.
