NIC U+ SX 19/.04 rotary file

NIC® U+ Rotary Files

SX / 19mm
$42.00 CAD
$42.00 CAD
Skip to product information
NIC U+ SX 19/.04 rotary file
  • NIC U+ SX 19/.04 rotary file

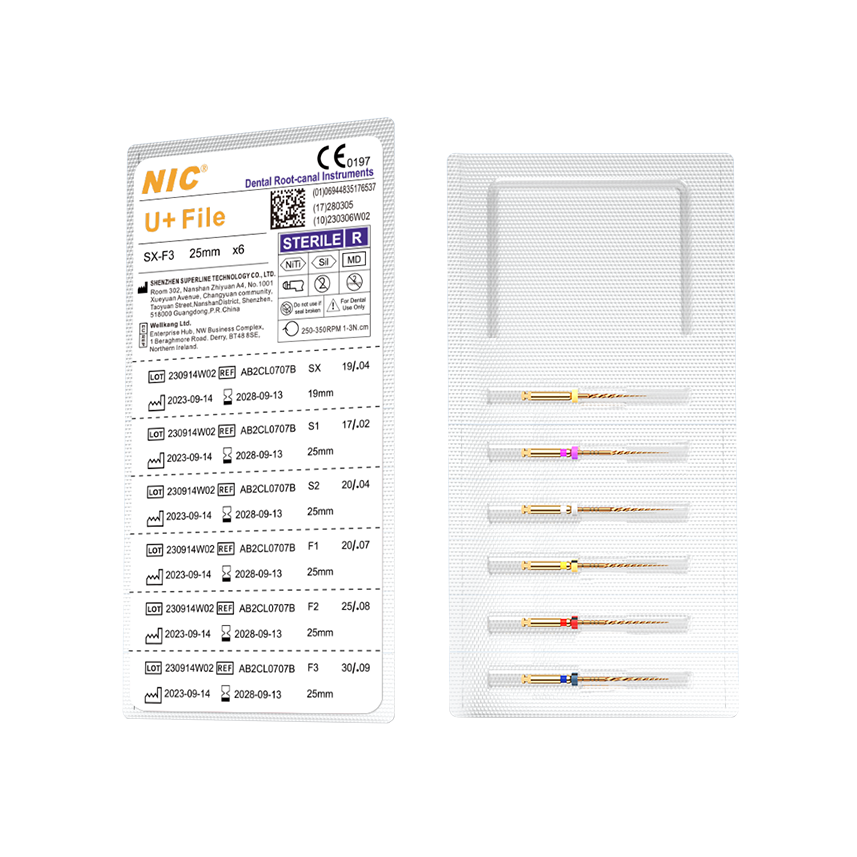

  • NIC® U+ sterile rotary files
  • NIC U+ S1 18/.02 rotary file

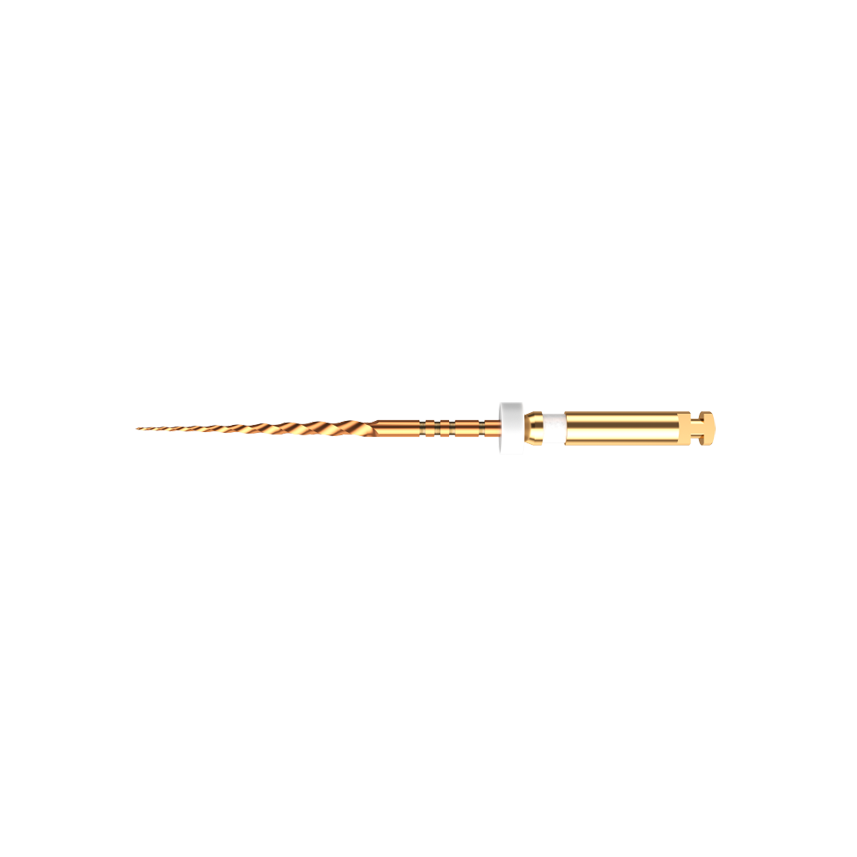

  • NIC U+ S2 20/.04 rotary file
  • NIC U+ F1 20/.07 rotary file

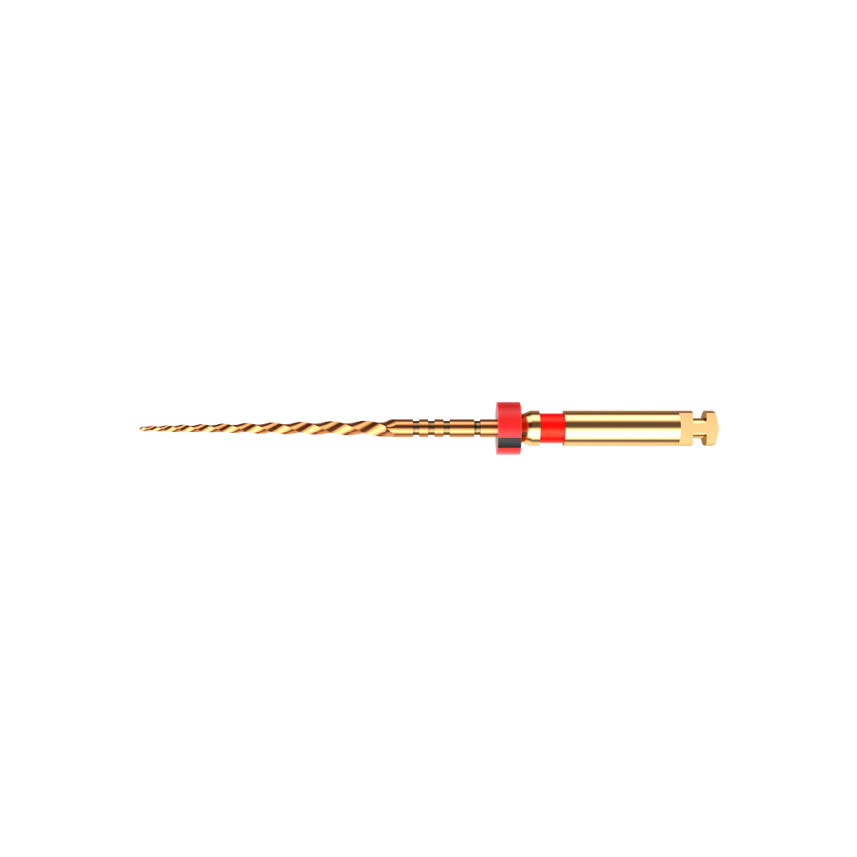

  • NIC U+ F2 25/.08 rotary file
  • NIC U+ F4 40/.06 rotary file

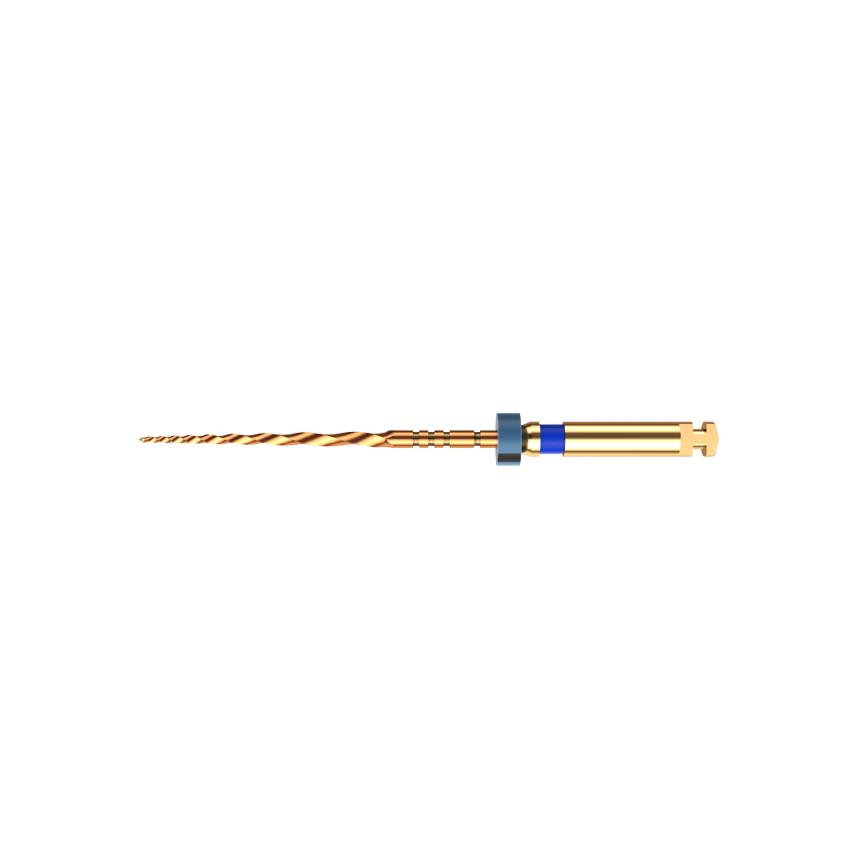

  • NIC U+ F3 30/.09 rotary file
  • NIC U+ F5 50/.05 rotary file

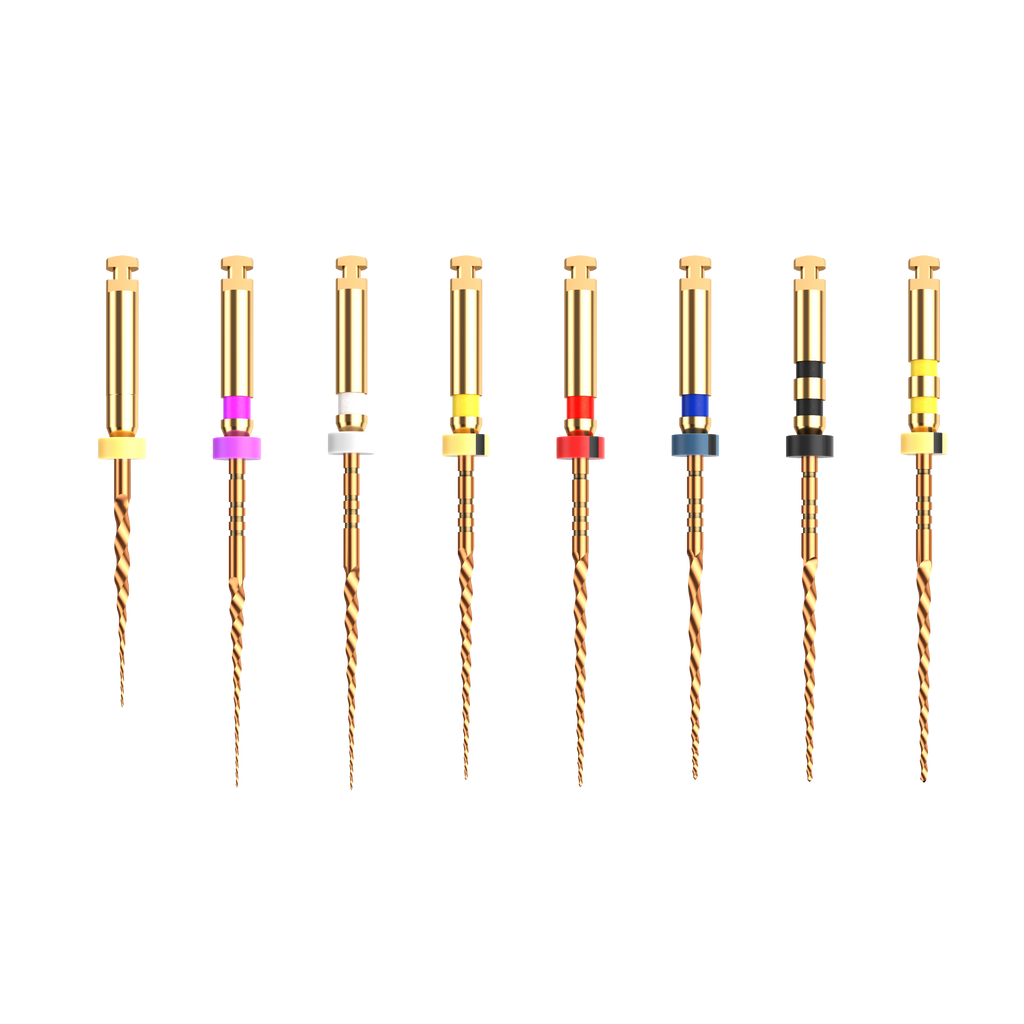

  • NIC U+ rotary file assortment
MaxTech™ 3.0 Heat Treatment
360° Rotary Motion
Crown Down File System
NiTi Aloy
Detailed product information

Specifications, clinical guidance, documents and safety information are available below.

View product details
NIC® Dental · Rotary Files
NIC® U+ Rotary Files

NIC® U+ Rotary Files

$42.00 CAD
$42.00 CAD
Size
Length
SKU: AFU0190SX
In stock
Free Shipping For All Products

We will work quickly to ship your order as soon as possible. All orders ship free with no minimum order quantity. Express shipping is available for an additional fee.
Return Policy

Return eligible items within 30 days of delivery. We offer free returns, making the process simple and hassle-free.

To be eligible for a return, your item must be unused, unopened, in the same condition as received, and in its original packaging. You'll also need the receipt or proof of purchase.
30-Day Try-It Guarantee

Trying one of our endodontic file systems for the first time? We want you to purchase with confidence. If the system is not well suited to your clinical technique, contact us within 30 days of purchase. We will help you select a more suitable option or provide an exchange or refund in accordance with our return policy.

Applies to first-time purchases of eligible products. Maximum one opened pack per product system. Proof of purchase is required.
Product details

NIC® U+ Rotary Files at a glance

Core specifications organized for quick review before selecting a configuration.

Manufacturer NIC® Dental
Motion Continuous clockwise rotation
Heat treatment MaxTech 3.0 gold heat-treated NiTi
Cross-section Convex triangular
Sizes 19/.04 / 18/.02 / 20/.04 / 20/.07 / 25/.08 / 30/.09 / 40/.06 / 50/.05
Lengths 19 mm / 21 mm / 25 mm / 31 mm
Packaging 6 instruments / pack
Sterility Sterile
Product overview

About this product

Additional information about this product and its intended clinical application.

NIC® U+ Rotary Files are heat-treated NiTi endodontic instruments designed for continuous clockwise root canal shaping using a multi-file sequence from coronal enlargement through finishing. Featuring a triangular cross-section and variable taper design, the system includes SX, S1, S2, and F1–F5 shaping and finishing files. SX is available in 19 mm, with other instruments available in 21 mm, 25 mm, and 31 mm lengths. Supplied in packs of 6 for single clinical use.

File identification

Recognize the file family by colour and size

Identify each file by its size, taper, colour and available length.

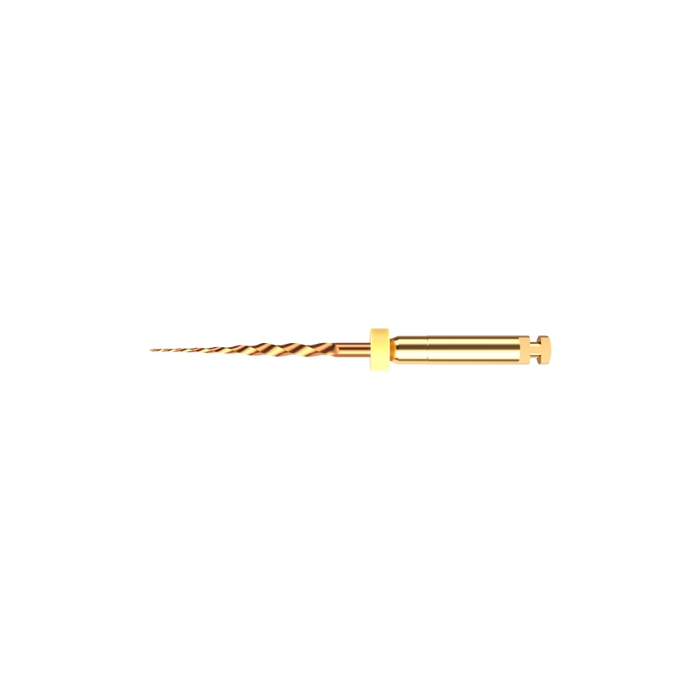

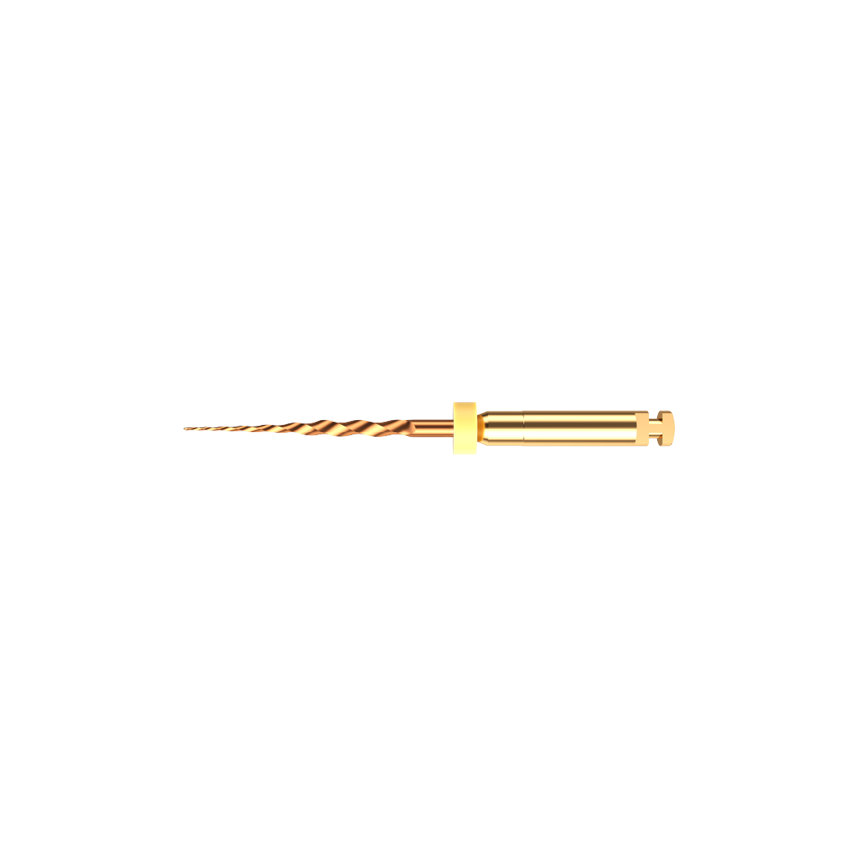

NIC® U+ Rotary Files SX 19/.04 Yellow file

SX

19/.04
Yellow

Selective coronal shaping, straight-line access and additional coronal enlargement.

19 mm 300 RPM 3.0 N·cm

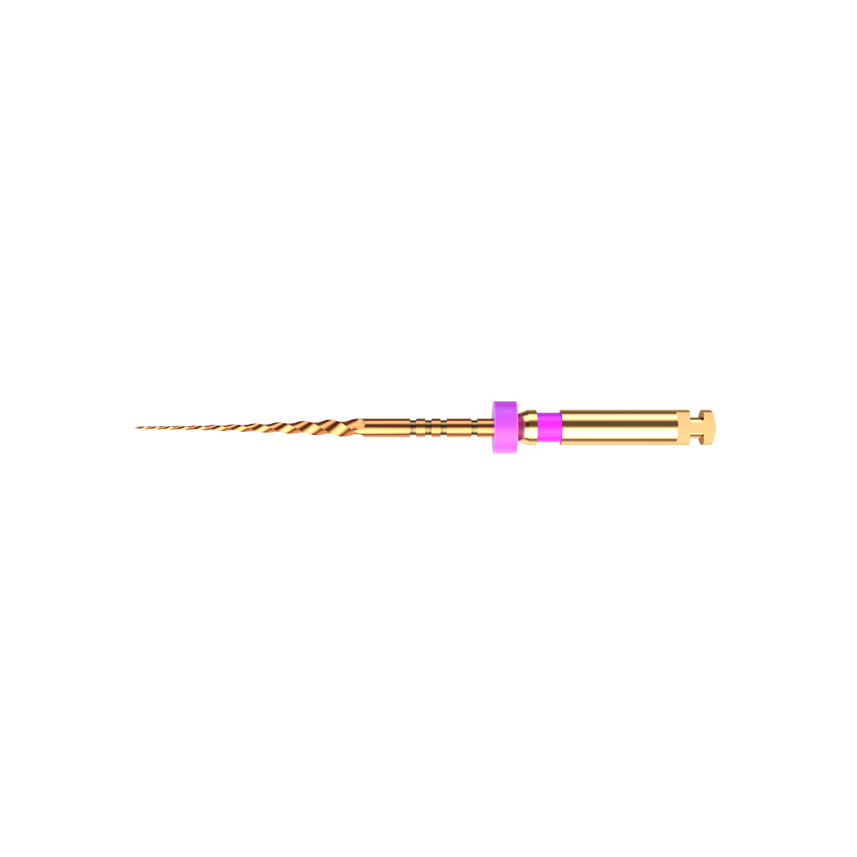

NIC® U+ Rotary Files S1 18/.02 Purple file

S1

18/.02
Purple

Crown-Down shaping with a brushing action on the withdrawal stroke.

21 mm / 25 mm / 31 mm 300 RPM 1.5 N·cm

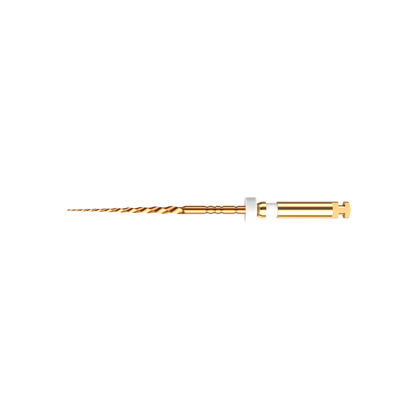

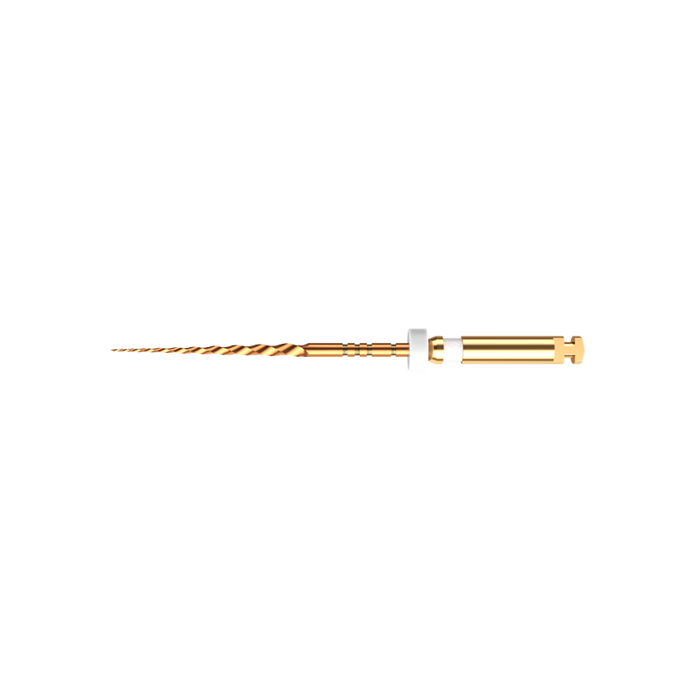

NIC® U+ Rotary Files S2 20/.04 White file

S2

20/.04
White

Progressive shaping with a brushing action on the withdrawal stroke.

21 mm / 25 mm / 31 mm 300 RPM 1.5 N·cm

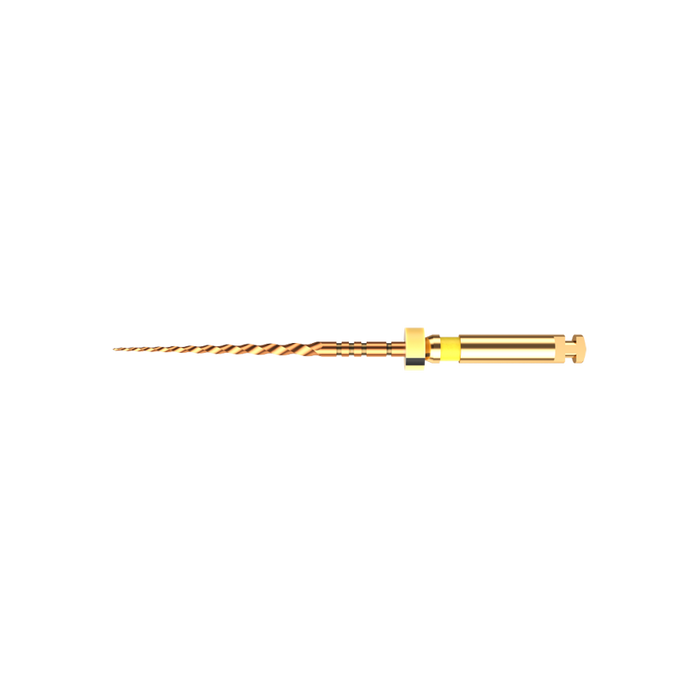

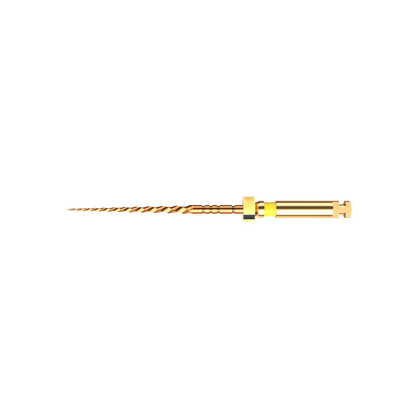

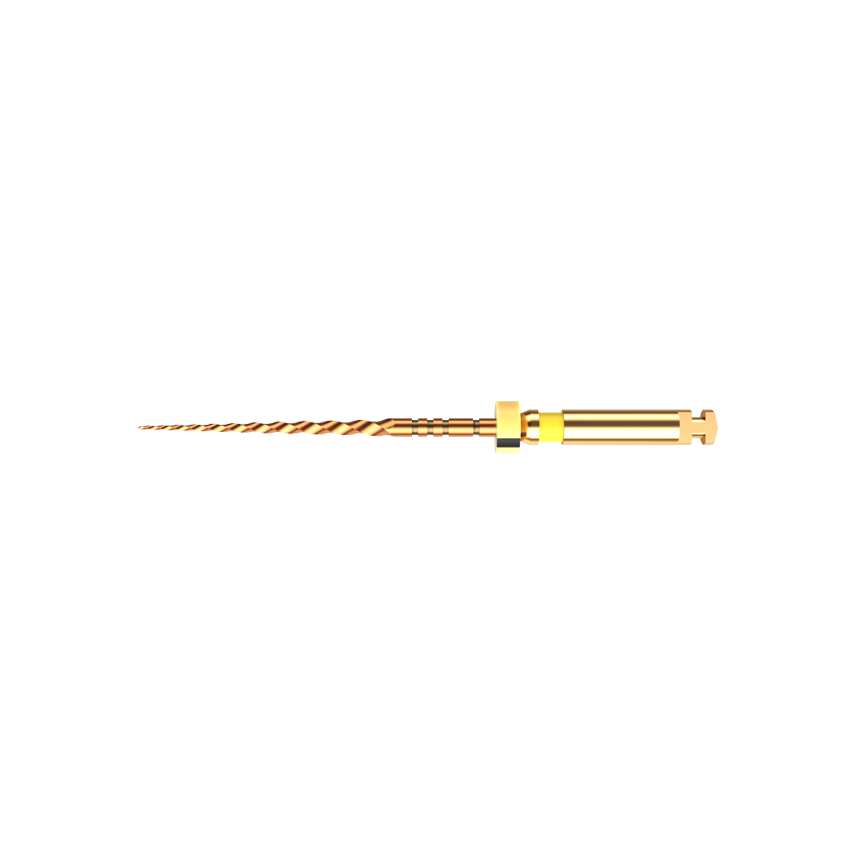

NIC® U+ Rotary Files F1 20/.07 Yellow file

F1

20/.07
Yellow

Initial apical finishing. Gauge the foramen with an ISO #20 hand file.

21 mm / 25 mm / 31 mm 300 RPM 1.5 N·cm

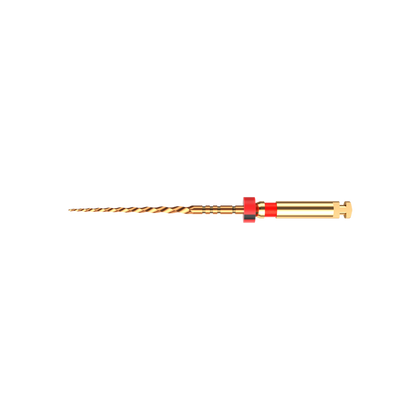

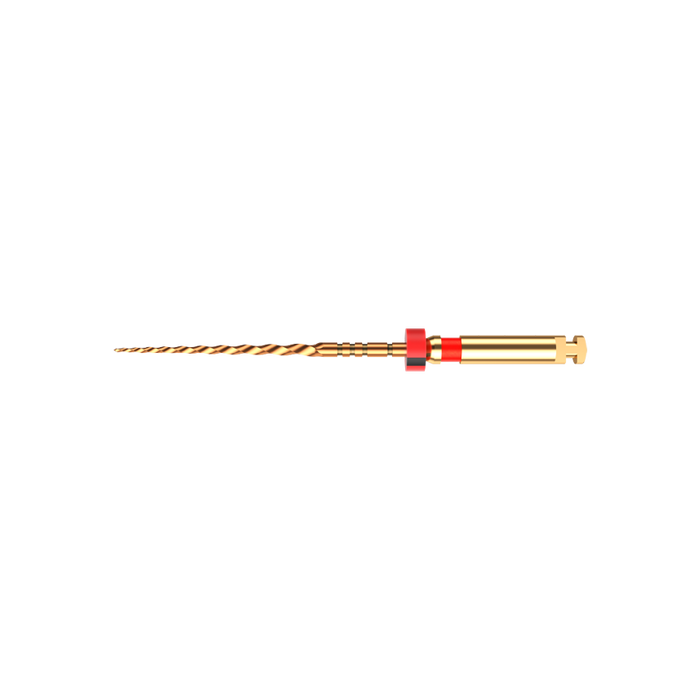

NIC® U+ Rotary Files F2 25/.08 Red file

F2

25/.08
Red

Progressive apical finishing. Gauge the foramen with an ISO #25 hand file.

21 mm / 25 mm / 31 mm 300 RPM 1.5 N·cm

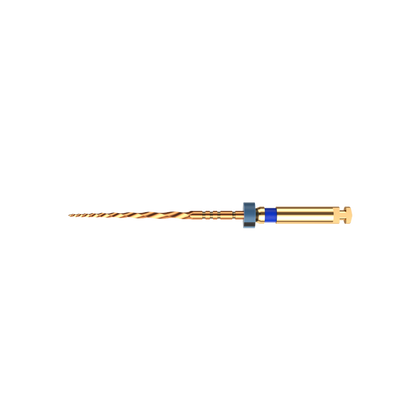

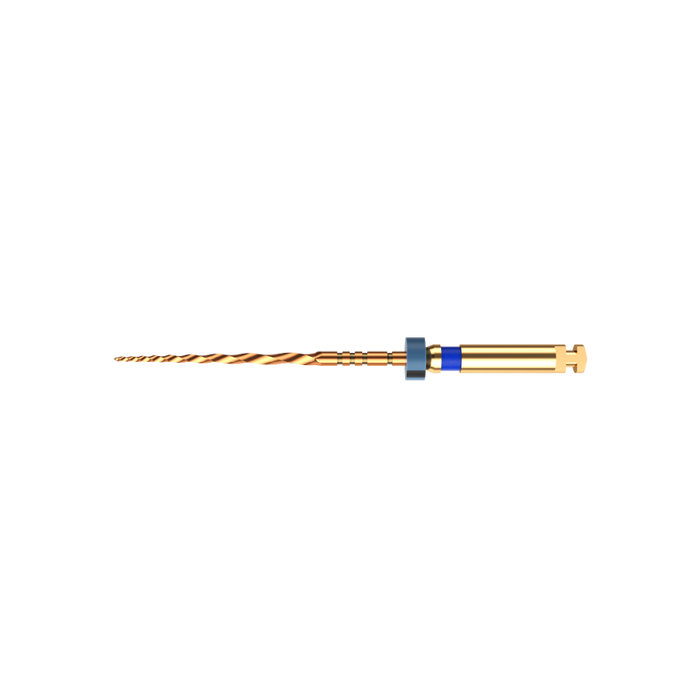

NIC® U+ Rotary Files F3 30/.09 Blue file

F3

30/.09
Blue

Progressive apical finishing. Gauge the foramen with an ISO #30 hand file.

21 mm / 25 mm / 31 mm 300 RPM 1.5 N·cm

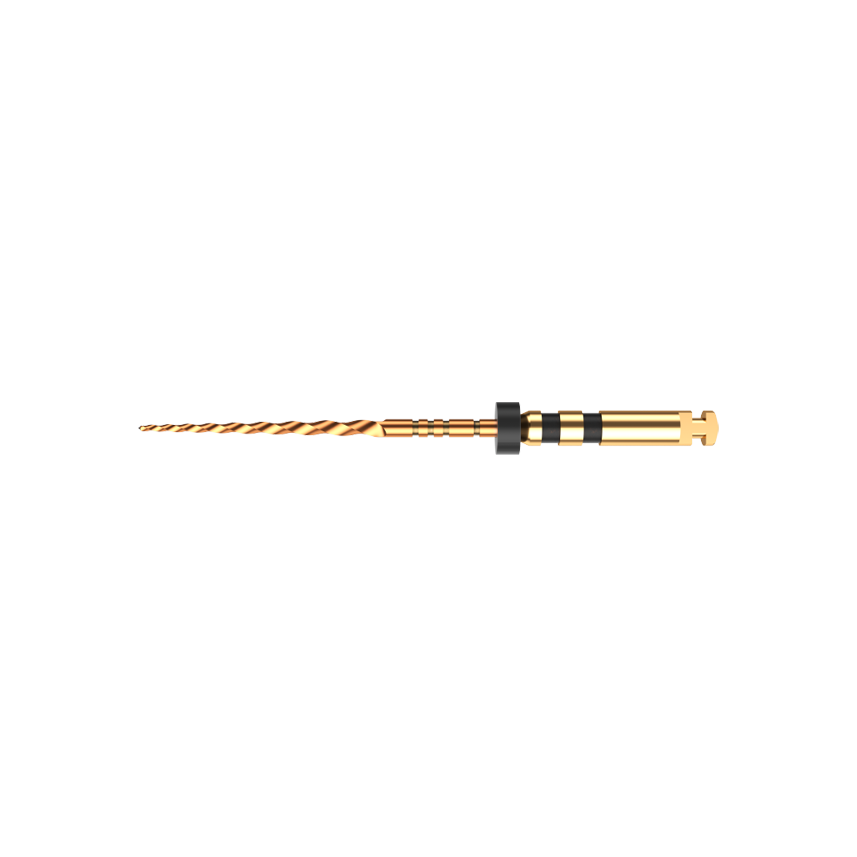

NIC® U+ Rotary Files F4 40/.06 Black file

F4

40/.06
Black

Progressive apical finishing. Gauge the foramen with an ISO #40 hand file.

21 mm / 25 mm / 31 mm 300 RPM 1.5 N·cm

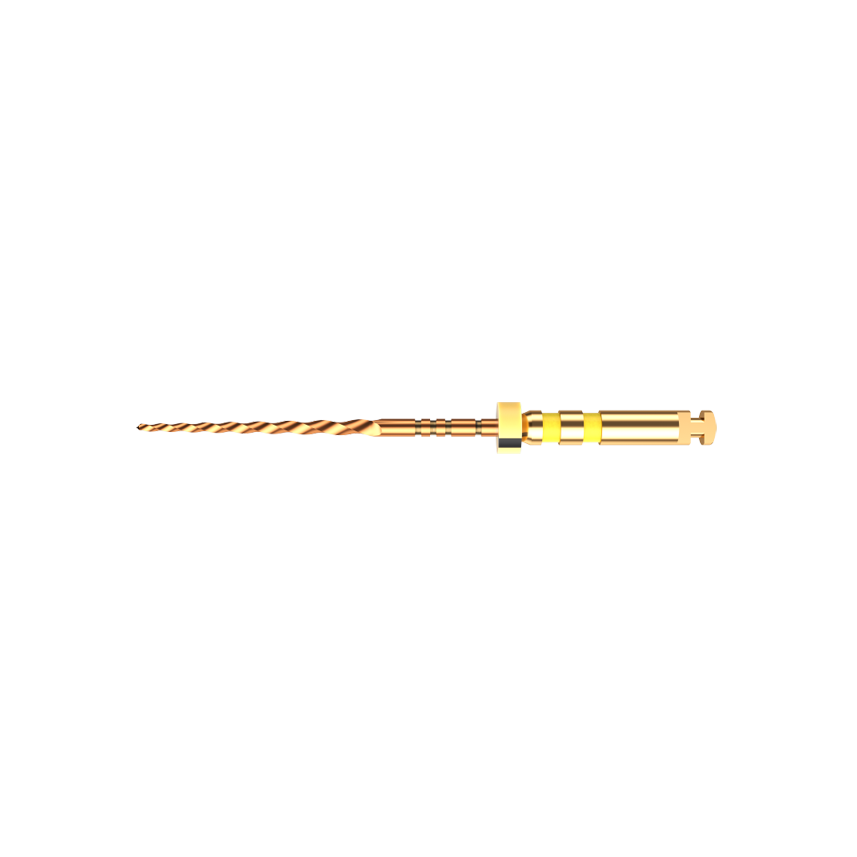

NIC® U+ Rotary Files F5 50/.05 Yellow file

F5

50/.05
Yellow

Largest finishing file. Gauge the foramen with an ISO #50 hand file.

21 mm / 25 mm / 31 mm 300 RPM 3.0 N·cm
Assortment pack

What’s included

View the exact file mix included in each assortment pack.

1 pack
Pack configuration

Assortment

A visual breakdown of every instrument included in this pack.

6 files
1 ×
SX Yellow identifier
1 ×
S1 Purple identifier
1 ×
S2 White identifier
1 ×
F1 Yellow identifier
1 ×
F2 Red identifier
1 ×
F3 Blue identifier
Familiar workflow

Coming from ProTaper Gold®?

NIC® U+ Rotary Files is organized around a familiar continuous clockwise rotation workflow for clinicians who already use ProTaper Gold®. Product-specific specifications and manufacturer guidance remain the reference for clinical use.

  • File family: SX · S1 · S2 · F1 · F2 · F3 · F4 · F5
  • Sizes: 19/.04 / 18/.02 / 20/.04 / 20/.07 / 25/.08 / 30/.09 / 40/.06 / 50/.05
  • Motion: Continuous clockwise rotation
  • Motor program: Continuous rotary · torque-controlled
Motion Continuous clockwise rotation
File family SX · S1 · S2 · F1 · F2 · F3 · F4 · F5
Motor setup Continuous rotary · torque-controlled
Heat treatment MaxTech 3.0 gold heat-treated NiTi

ProTaper Gold® is referenced to help identify a familiar clinical workflow. Product-specific use should follow the current manufacturer instructions for use. Motor terminology can vary between manufacturers.

Clinical specifications

Design & clinical use

Key technical and clinical characteristics of NIC® U+ Rotary Files.

Material / treatment MaxTech 3.0 gold heat-treated NiTi
Motion Continuous clockwise rotation
Cross-section Convex triangular
Taper design Variable taper with safe guiding tip
Technique Crown-Down shaping with progressive apical finishing
Motor & motion

Continuous clockwise rotation motor setup

Recommended operating configuration for this file system.

Motion Continuous clockwise rotation
Motor program Continuous rotary · torque-controlled
Speed 300 RPM
Torque 1.5–3.0 N·cm · file-specific
Use the motor program and settings specified for this product. If your motor uses different terminology, confirm the selected program and follow the current manufacturer instructions for use.
Clinical workflow

Step-by-step clinical workflow

Follow the clinical sequence below together with the current manufacturer instructions for use.

0 1 Establish access, working length and glide path Straight-line access · working length · glide path to at least ISO 015

Establish straight-line access, determine working length and prepare a smooth, reproducible glide path before introducing the U+ rotary shaping files.

  • Confirm canal patency and working length.
  • Enlarge the glide path to at least ISO 015.
  • Irrigate and recapitulate before beginning rotary shaping.
  • Do not force a U+ file into a canal that has not been adequately negotiated.
0 2 Shape the coronal and middle canal S1 18/.02 · S2 20/.04 · selective SX 19/.04

Progress through the shaping files using the Crown-Down technique and the manufacturer-specified motor settings.

  • Use S1 18/.02 to begin progressive shaping.
  • Use a brushing action on the withdrawal stroke rather than sustained apical pressure.
  • Use SX 19/.04 selectively when additional coronal enlargement or improved straight-line access is clinically indicated.
  • Continue with S2 20/.04 toward working length.
  • Remove and clean the file frequently.
  • Irrigate, recapitulate and re-irrigate between files.
0 3 Complete apical finishing as indicated F1 20/.07 · F2 25/.08 · F3 30/.09 · F4 40/.06 · F5 50/.05

Begin apical finishing with F1 after shaping with S1 and S2. Evaluate the apical preparation after each finishing file and continue only when additional enlargement is indicated.

  • F1 20/.07 — gauge with an ISO #20 hand file.
  • F2 25/.08 — gauge with an ISO #25 hand file.
  • F3 30/.09 — gauge with an ISO #30 hand file.
  • F4 40/.06 — gauge with an ISO #40 hand file.
  • F5 50/.05 — gauge with an ISO #50 hand file.
  • Use minimal apical pressure.
  • Clean the flutes frequently and inspect the instrument.
  • Irrigate, recapitulate and re-irrigate after each file.
Documents & resources

Product information in one place

Product documents and technical resources for this file system.

IFU

Instructions for Use

Manufacturer instructions and product-specific clinical-use information.

View IFU → CAT

Product Catalogue

Product-family sizes, configurations and reference information.

View catalogue →
Sterility & safety

Important information for this product version

Review the sterility, handling and safety information for this exact product version.

Sterility Sterile
Use Single Use
Clinical handling & safety Review before clinical use
Sterilization information

NIC® U+ files in this listing are supplied sterile and are intended for single clinical use only. No pre-use sterilization is required when the sterile barrier is intact. Do not clean, disinfect, sterilize or re-sterilize before use. Do not use if the sterile package is damaged, opened, wet or otherwise compromised. After clinical use, discard the instrument in an appropriate biohazard sharps container. Do not clean, disinfect, sterilize or reuse the file after clinical use.

  • For professional dental use only.
  • Use appropriate personal protective equipment and rubber dam isolation.
  • Do not use in patients with known allergic sensitivity to nickel-titanium alloy or any component of the device.
  • Do not use if the sterile package is damaged, opened, wet or otherwise compromised.
  • Do not use a file that is deformed, unwound, corroded, fractured or shows signs of wear.
  • Review pre-operative radiographs and determine working length using standard clinical methods before shaping.
  • Establish straight-line coronal and radicular access before introducing U+ files.
  • Establish a smooth, reproducible glide path to at least ISO 015 before rotary shaping.
  • Use only with a compatible torque-controlled endodontic motor in continuous clockwise rotation. Do not use U+ in reciprocating motion.
  • Use the manufacturer-specified speed and file-specific torque settings.
  • Use minimal apical pressure. Never force a U+ file down the canal.
  • Use S1, S2 and SX with a brushing action on the withdrawal stroke, brushing away from the furcation.
  • Use finishing files F1 through F5 with a passive, non-brushing action to working length.
  • Do not hold a finishing file at working length for longer than approximately one second.
  • Clean the flutes frequently and inspect the instrument for distortion or wear.
  • Irrigate, recapitulate and re-irrigate frequently throughout preparation, at minimum after each file.
  • Exercise additional caution around significant curvatures and complex canal anatomy where safe passive progression cannot be achieved.
  • Select the final finishing size according to canal anatomy and apical gauging. Avoid unnecessary over-enlargement.
  • A slight curvature caused by heat treatment is not necessarily a manufacturing defect. It is not necessary to straighten the instrument before use.
  • Single clinical use only. Do not clean, disinfect, sterilize, re-sterilize or reuse after clinical use.
  • After clinical use, discard the instrument in an appropriate biohazard sharps container.
Frequently asked questions

Common questions

Quick answers about product selection, configuration and clinical use.

Which U+ file is used first for shaping?

After a smooth, reproducible glide path has been established, shaping normally begins with S1 18/.02. SX 19/.04 is used selectively when additional coronal enlargement or improved straight-line access is indicated.

When is SX 19/.04 used?

SX is a selective coronal shaping file used for straight-line access and additional coronal enlargement when clinically indicated. It is not an automatic first step in every canal.

What is the U+ shaping sequence?

The U+ workflow progresses through S1 and S2 for shaping, followed by F1 for initial apical finishing. F2, F3, F4 and F5 are used progressively only when additional apical enlargement is indicated.

What motor settings are used for U+?

NIC® U+ is used in continuous clockwise rotation at 300 RPM with a compatible torque-controlled endodontic motor.

What torque is used for each U+ file?

SX and F5 are used at 3.0 N·cm. S1, S2 and F1 through F4 are used at 1.5 N·cm.

Can U+ be used in reciprocating motion?

No. NIC® U+ is intended for continuous clockwise rotary motion.

What glide path is required before using U+?

Establish a smooth, reproducible glide path to at least ISO 015 before beginning U+ rotary shaping.

Which lengths are available for U+?

SX is available in 19 mm. S1, S2 and F1 through F5 are available in 21 mm, 25 mm and 31 mm lengths.

Is this U+ listing sterile?

Yes. This U+ listing is supplied sterile and is intended for single clinical use. No pre-use sterilization is required when the sterile barrier is intact. Do not re-sterilize or reuse the instruments.

Where is NIC® U+ manufactured?

NIC® U+ is manufactured in Shenzhen, Guangdong, China.
